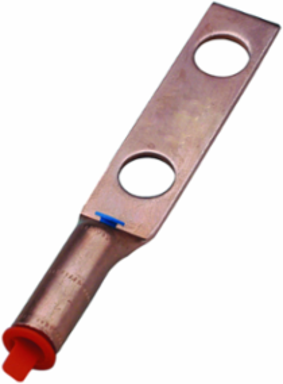

Burndy YGA2C2N Hylug Copper Grounding Terminal, 4.71 Inch Length, 2 Str. Size, UL Listed
- MPN: YGA2C2N
- UPC: 781810220306
- PPN: BUR-279066
CAD
$37.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hylug Copper ground, 2 str., 4.71 in L, Grounding Irreversible Compression Terminals.
Documentation & Downloads
Specifications

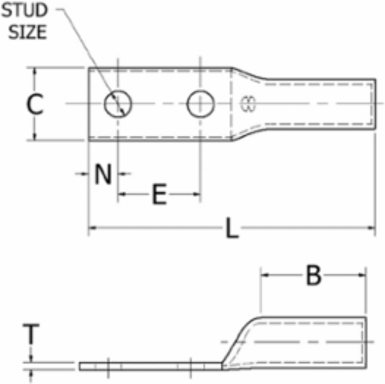

Dimensions
| Dimension - B Length fraction | 1-2/9 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - L Length Overall mm | 120 mm |
| Dimension - N inch | 0.62 in |
| Dimension - Pad Width inch | 0.83 in |
| Dimension - Stud Size fraction | 1/2 |
| Dimension - Width fraction | 2/5 in |
| Dimension - B Length inch | 1.22 in |
|---|---|
| Dimension - Bolt Size inch | 0.50 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Length Overall inch | 4.71 in |
| Dimension - Outside Diameter inch | 0.42 in |
| Dimension - Strip Length inch | 1-5/16 |
| Dimension - Stud Size inch | 1/2 |
| Dimension - Width inch | 0.41 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Listed Direct Burial | Yes |
| Certification - cULus | No |
| Standards - Industry Standards Met | UL467 |
| UL Listed | Yes |
| Certification - ETL | No |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 |
| Standards - RoHS Compliance Status | CM |
Conductor Related
| Conductor - Copper Str Size | 2 Str. |
|---|
| Conductor - Copper Str Size Range | 2 Str. |
|---|
General
| Application | For Grounding Applications And Direct Burial In Earth Or Concrete |
|---|---|
| Connector Type | Terminal |
| Material | Copper |
| Plated | N |
| Sub Brand | HYLUG |
| Type | Terminals |
| UPC 12 Digit | 7818102203066 |
| Color Code | Brown |
|---|---|
| Die Index | 10 |
| Physical Attribute - Number of Crimps Required | 2 |
| Plating Type | Unplated |
| Trade Name | HYLUG™ |
| UPC | 781810220306 |
Logistics
| Minimum Pack Quantity | 1 |
|---|
