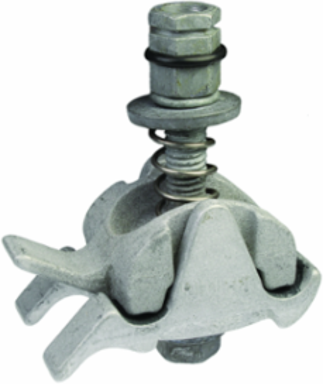

Burndy UCT32RSHN BURNDY® FASTAP™ with LINEMAN ASSIST™ Aluminum Parallel Groove Clamp
- MPN: UCT32RSHN
- UPC: 781810643860
- PPN: BUR-50099352
CAD
$76.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Parallel Groove Clamp with Shear nut, Run: Cu & AL: 1 Sol. - 400, ACSR: 2 - 336.4, Tap: Cu & AL: 8 Sol. - 4/0, ACSR: 6 - 4/0
Documentation & Downloads
Specifications
Key Specifications
| Item Type | 3B |
|---|---|
| Plated | N |
| Trade Name | FASTAP™ |
| UPC 12 Digit | 7818106438600 |
| Dimension - Length Overall inch | 1.62 in |
| Conductor - AAAC 5005 Size | 6 STR - 336.4 |
| Conductor - AAAC 6201 Size | 6 STR - 336.4 |
| Conductor - ACSR Str Size | 6 STR - 336.4 |
| Conductor - ACSR Str Size B Range | 6 Str. - 4/0 |
| Conductor - AL Str Size A Range | 1 Sol. - 400 |
| Conductor - AL Str Size B Range | 8 Sol. - 4/0 Str. |
| Conductor - Copper Solid Size Range | 8-400 |
| Conductor - Copper Str Size B Range | 8 Sol. - 4/0 Str. |
| Standards - RoHS Compliance Status | EX |
| Material | Aluminum |
|---|---|
| Plating Type | Unplated |
| UPC | 781810643860 |
| Dimension - Height inch | 2.62 in |
| Dimension - Width inch | 2.82 in |
| Conductor - AAAC 5005 Size Range | 6 STR - 336.4 |
| Conductor - AAAC 6201 Size Range | 6 STR - 336.4 |
| Conductor - ACSR Str Size A Range | 2 Str. - 336.4 |
| Conductor - AL Str Size A | 1 SOL - 400 |
| Conductor - AL Str Size B | 8 SOL - 4/0 STR |
| Conductor - Copper Solid Size | 8-400 |
| Conductor - Copper Str Size A Range | 1 Sol. - 400 |
| Certification - CSA Approved | No |
