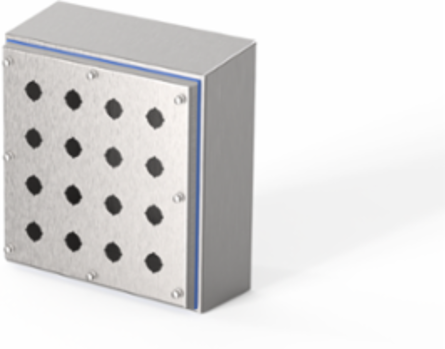

nVent Hoffman HS16PBXSS HyShed Screw Cover Pushbutton Type 4X, 11x11x4, 30.5 mm, SS304

Description

Features

• Brushed #4 Finish for Dairy Applications
• Pre-Punched 22.5 mm or 30.5 mm
• Patterns from 1 up to 16 holes
• 10-degree sloped top facilitates runoff of water and cleaning solutions; prevents fluids or particulates from pooling
• Door edges are sloped to facilitate runoff
• Replaceable FDA-grade silicone gasket compliant with FDA Guideline 21 CFR 177.2600
• Gasket is sanitary Pantone 287 blue color for easy detection by common food scanning equipment and vision systems
• Screw FDA-grade silicone o-ring gasket maintains strong seal; includes captivation mechanism to keep screws in place and prevent over-torquing
• Stainless steel crevice-free screw surfaces to reduce bacteria harboring catch points; uses standard tool to open
• Solid back with no pre-tapped mounting holes for easy weld mounting; optional IP69K sanitary stand-off kit available
• Seams continuously welded and ground smooth
• Bonding provision on door and body
• Furnished hardware kit consists of panel mounting kit and grounding kit
