nVent Hoffman E9PBGSS Pushbutton Screw Cover Type 4X, 9PBx22.5mm, SS304
- MPN: E9PBGSS
- UPC: 783510101527
- PPN: HOF-E9PBGSS
- UNSPSC: 39121326
CAD
$1052.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

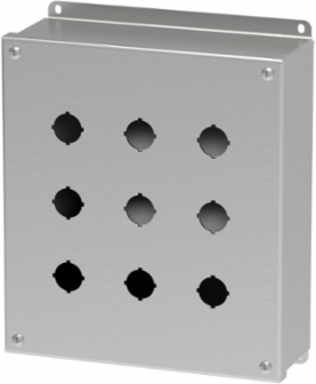

This stainless steel enclosure is pre-punched for easy installation of 30.5mm or 22.5mm components. This Pushbutton Screw Cover Type 4X, E9PBGSS item measures 9PBx22.5mm with a material of SS304.
Features
- Prepunched 30.5mm or 22.5mm holes
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on door; grounding nut on body
- 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Oil-resistant gasket
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 216
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #4
- Hole Size (HS)
- 22.5
- Overall Dimensions (L x W)
- 267 x 221
- IP Rating
- IP66
- Number of Holes
- 9
- Size
- 9PB x 22.5mm
Height (H)241
Depth (D)76
Product FamilyPushButton
Thickness (T)1.98
Hole Quantity9
Mounting (G x H)254 x 194
Weight5.94
MaterialStainless Steel
NEMA Rating4X Watertight, corrosion-resistant
