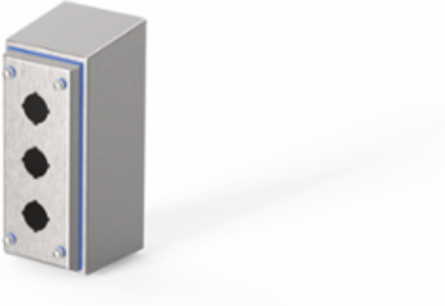

nVent Hoffman HS3PBGXSS HyShed Screw Cover Pushbutton Type 4X, 9x4x4, 22.5 mm, SS304
- MPN: HS3PBGXSS
- UPC: 783510577766
- PPN: HOF-HS3PBGXSS
- UNSPSC: 39121326
CAD
$1251.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HyShed Screw Cover Pushbutton Type 4X, 9x4x4, 22.5 mm, SS304
Features
- Brushed #4 Finish for Dairy Applications
- Pre-Punched 22.5 mm or 30.5 mm
- Patterns from 1 up to 16 holes
- 10-degree sloped top facilitates runoff of water and cleaning solutions; prevents fluids or particulates from pooling
- Door edges are sloped to facilitate runoff
- Replaceable FDA-grade silicone gasket compliant with FDA Guideline 21 CFR 177.2600
- Gasket is sanitary Pantone 287 blue color for easy detection by common food scanning equipment and vision systems
- Screw FDA-grade silicone o-ring gasket maintains strong seal; includes captivation mechanism to keep screws in place and prevent over-torquing
- Stainless steel crevice-free screw surfaces to reduce bacteria harboring catch points; uses standard tool to open
- Solid back with no pre-tapped mounting holes for easy weld mounting; optional IP69K sanitary stand-off kit available
- Seams continuously welded and ground smooth
- Bonding provision on door and body
- Furnished hardware kit consists of panel mounting kit and grounding kit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Height 2 (H2)
- 250
- Depth (D)
- 102
- Hole Quantity
- 3
- Product Family
- HyShed
- Finish
- #4 Dairy
- Cover Screw Quantity
- 4
- IP Rating
- IP66
Height 1 (H1)232
Width (W)105
Hole Size (HS)22.5
Protection RatingNEMA Type 12
MaterialStainless Steel, 304
Thickness (T)1.98
NEMA Rating12 Indoor, dust-resistant
