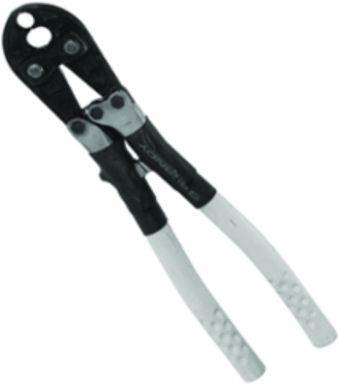

Burndy MD614 HYTOOLTM 19 Inch Hand Operated Crimper, 4.5 Ton Capacity, W Die & X Die
- MPN: MD614
- UPC: 781810010945
- PPN: BUR-464043
CAD
$1376.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Hand Operated Tool With straight fiberglass handles 19 in long with grips, 4.5 ton Crimp Force, Permanent BG (5/8) and D3 grooves

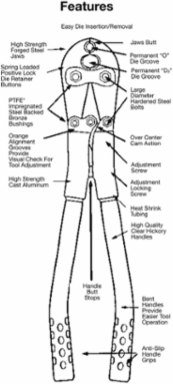

Features
- Ergonomically designed, one-piece, composite polymer handles
- Comfort grip handles
- 5 year limited warranty
- Time-proven steel jaw designs
- No tool adjustment required
- 99,000 crimp/cycle life
- Positive lock, spring loaded die retainer buttons
- PTFE impregnated steel/bronze bushings and stainless steel pins
- Electroless nickel plated jaws and jaw links
Documentation & Downloads
Specifications
General
| Crimp Force Capacity | 4.5 ton |
|---|---|
| Tool Type | Hand Operated Crimper |
| Type | Crimpers |
| UPC 12 Digit | 7818100109455 |
| Die Type | W Dies |
|---|---|
| Trade Name | HYTOOL™ |
| UPC | 781810010945 |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | EX |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | No |
Conductor Related
| Crimping Ranges | Taps: Copper: #10 sol. to 2/0 str., Aluminum & ACSR: #14 sol. to 4/0 ACSR; Stirrups: #6 to 4/0 ACSR; Overhead Full Tension Deadends, Full Tension Splices and Terminals: #10 str. to 4/0 ACSR; Installs Splices, Taps or Terminations: #8 to 500 kcmil Copper Stranded, #8 to 350 kcmil Copper Flex, #8 to 350 kcmil Aluminum |
|---|
