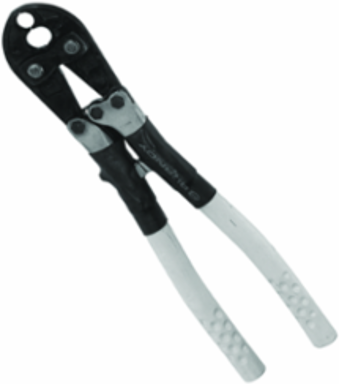

Burndy MD64 HYTOOLTM Hand Operated Crimper, 24 Inch Fiberglass, 4.5 Ton Capacity
- MPN: MD64
- UPC: 781810446058
- PPN: BUR-464640
CAD
$1335.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Hytool, 31.50 in L, Weight-8lbs,forged steel jaw.

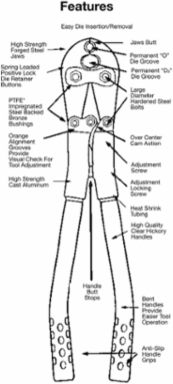

Features
- Easy Die Insertion/Removal
- Features: Fiberglass Rated At 100 KV Per Foot For 5 Minutes, Permanent Dies: Yes, Covered Handles: Yes, Handle Length: 24 IN, Dies Used: BG And D3, Weight: 6 LB, Accepts Dies: Yes, Cutting Dies Available: Yes, Fully Covered: No5 year limited warranty
- High Strength Forged Steel Jaws
- Spring loaded Positive Lock Die Retainer Buttons
- PTFE Impregnated Steel Backed Bronze Bushings
- Orange Alignment Grooves Provide Visual Check for Tool Adjustment
- High Strength Cast Aluminum
- Butting Jaws
- Permanent "O" Die Groove
- Permanent "D3" Die Groove
Documentation & Downloads
Specifications
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | EX |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | No |
General
| Application | For use on:Copper, Aluminum, ACSR, Copperweld, Alumoweld, Steel, 6201 5005, Compressed and compact conductors, Copper Taps: #10 sol. - 2/0 str.,Aluminum, ACSR Taps: #14 sol. - 4/0 ACSR, Stirrups: #6 ACSR - 4/0 ACSR,Overhead Full Tension Deadend, Full Tension Splices, Non Tension Splices, and Terminals Conductor Range: #10 str. - 4/0 ACSR,Code conductor connectors: #6 - 4/0 str. Copper and Aluminum |
|---|---|
| Die Type | W and X styles |
| Tool Type | Hand Operated Crimper |
| Type | Crimpers |
| UPC 12 Digit | 7818104460588 |
| Crimp Force Capacity | 4.5 ton |
|---|---|
| Sub Brand | HYTOOL |
| Trade Name | HYTOOL™ |
| UPC | 781810446058 |
Dimensions
| Length | 31.5 in |
|---|---|
| Width | 7.50 in |
| Weight | 8.25 lb |
|---|
Conductor Related
| Crimping Ranges | Taps: Copper: #10 sol. to 2/0 str., Aluminum & ACSR: #14 sol. to 4/0 ACSR; Stirrups: #6 to 4/0 ACSR; Overhead Full Tension Deadends, Full Tension Splices and Terminals: #10 str. to 4/0 ACSR; Installs Splices, Taps or Terminations: #8 to 500 kcmil Copper Stranded, #8 to 350 kcmil Copper Flex, #8 to 350 kcmil Aluminum |
|---|
