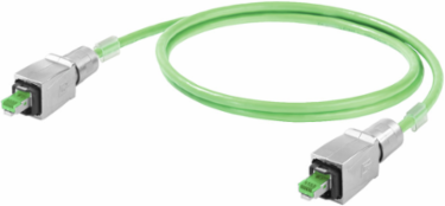

Weidmuller 1119730030 IE-C5DD4UG0030A2EA2E-X
- MPN: 1119730030
- PPN: WDM-1119730030
CAD
$151.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Dragline cable, PROFINET, RJ45 IP 67 PushPull V14 metal, RJ45 IP 67 PushPull V14 metal, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 3 m
Documentation & Downloads
Specifications
Electrical Properties
| Insulation strength | 500,000 Ω |
|---|
Cable Structure
| Wire material | Stranded tin-plated copper wire |
|---|---|
| Strands | 7 |
| Insulation | PE |
| Wire core insulation thickness | 0.38 mm |
| Arrangement of wire cores | Star-quad |
| Diameter of inner sheathing | 3.9 mm |
| Shielding | SF/UTP |
| Shielding braid thickness | 0.13 mm |
| Material sheath | PUR |
| Sheath diameter, max. | 6.7 mm |
| Sheathing colour | green (RAL 6018) |
| Standard designations | 2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC |
|---|---|
| Cross-section | 4*AWG 22/7 - 0.36 mm² |
| Insulation cross-section | 1.5 mm |
| Number of wires | 4 |
| Colour sequence or wires - wire pairs | white, yellow, blue, orange |
| Filler | As central element |
| Complete shielding | Aluminium foil, Shielding braid made from copper wiring |
| Overlap of shielding braid | 85 % |
| Sheath diameter, min. | 6.3 mm |
| Sheathing material thickness | 0.9 mm |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 5 x cable diameter |
|---|---|
| Bending cycles | 3 Mio |
| Speed | 180 m/min |
| Abrasion resistance | very good |
| Resistance to oils | in accordance with IEC 60811-2-1 |
| Silicone-free | Yes |
| Fire propagation | No |
| Min. bending radius, repetitive | 7.5 x cable diameter |
|---|---|
| Pulling force | ≤ 150 N |
| Acceleration | 4 m/s² |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| UV-resistant | Yes |
| Halogen | halogen-free, according to IEC 60754-2 |
Dimensions And Weights
| Length | 3 m |
|---|---|
| Net weight | 342 g |
| Length (inches) | 0.118 inch |
|---|---|
| Insulation cross-section | 1.5 mm |
Plug
| Connector left | RJ45 IP 67 PushPull V14 metal |
|---|
| Connector right | RJ45 IP 67 PushPull V14 metal |
|---|
Standards
| Connector standard | IEC 61076-3-117 Var. 14, IEC 60603-7-51 |
|---|---|
| Standard, wire material | DIN EN 13602 Cu-ETP-A |
| Standard, insulating material | DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3) |
|---|---|
| Standard, shielding material | DIN EN 13602 Cu-ETP-A..B |
Classifications
| ETIM 6.0 | EC002599 |
|---|---|
| eClass 9.0 | 27-06-03-08 |
| eClass 10.0 | 27-06-03-08 |
| ETIM 7.0 | EC002599 |
|---|---|
| eClass 9.1 | 27-06-03-08 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Electrical Properties Of Cable
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
|---|---|
| Test voltage: wire-wire-shield | 2000 Veff, 50 Hz, 1 min |
| Loop resistance | 120 Ω/km |
| Resistance differential | 3 % |
| Insulation strength | 500,000 Ω |
| Signal propagation time | 5.3 ns/m |
| Operating voltage (UL rating) | 600 V undefined |
|---|---|
| Characteristic impedance | 100 ± 15 Ω at 1–100 MHz |
| Deviation | 40 ns/100m |
| Transfer impedance | 20 mΩ/m at 10 MHz |
| Capacity at 1 kHz | 52 nF/km |
| Speed | 180 m/min |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 70 °C |
| Operating temperature | -40 °C...70 °C |
| Installation temperature | -20 °C...60 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -50 °C |
| Storage temperature | -50 °C...70 °C |
