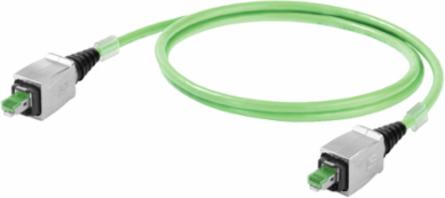

Weidmuller 1307610030 IE-C5DD4UG0030B2EB2E-X
- MPN: 1307610030
- PPN: WDM-1307610030
CAD
$160.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Dragline cable, PROFINET, RJ45 IP 67 PushPull moulded V14 metal, RJ45 IP 67 PushPull moulded V14 metal, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 3 m
Documentation & Downloads
Specifications
Electrical Properties
| Insulation strength | 500,000 Ω |
|---|
Cable Structure
| Sheath diameter | 6.7 mm |
|---|---|
| Standard designations | 2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC |
| Cross-section | 4*AWG 22/7 - 0.36 mm² |
| Insulation cross-section | 1.5 mm |
| Number of wires | 4 |
| Colour sequence or wires - wire pairs | white, yellow, blue, orange |
| Filler | As central element |
| Complete shielding | Aluminium foil, Shielding braid made from copper wiring |
| Overlap of shielding braid | 85 % |
| Sheath diameter, min. | 6.3 mm |
| Sheathing material thickness | 0.9 mm |
| Wire material | Stranded tin-plated copper wire |
|---|---|
| Strands | 7 |
| Insulation | PE |
| Wire core insulation thickness | 0.38 mm |
| Arrangement of wire cores | Star-quad |
| Diameter of inner sheathing | 3.9 mm |
| Shielding | SF/UTP |
| Shielding braid thickness | 0.13 mm |
| Material sheath | PUR |
| Sheath diameter, max. | 6.7 mm |
| Sheathing colour | green (RAL 6018) |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 5 x cable diameter |
|---|---|
| Bending cycles | 3 Mio |
| Speed | 180 m/min |
| Abrasion resistance | very good |
| Resistance to oils | in accordance with IEC 60811-2-1 |
| Silicone-free | Yes |
| Fire propagation | No |
| Min. bending radius, repetitive | 7.5 x cable diameter |
|---|---|
| Pulling force | ≤ 150 N |
| Acceleration | 4 m/s² |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| UV-resistant | Yes |
| Halogen | halogen-free, according to IEC 60754-2 |
Dimensions And Weights
| Length | 3 m |
|---|---|
| Net weight | 304 g |
| Length (inches) | 0.118 inch |
|---|---|
| Insulation cross-section | 1.5 mm |
Plug
| Connector left | RJ45 IP 67 PushPull moulded V14 metal |
|---|
| Connector right | RJ45 IP 67 PushPull moulded V14 metal |
|---|
Standards
| Connector standard | IEC 61076-3-117 Var. 14 |
|---|---|
| Standard, wire material | DIN EN 13602 Cu-ETP-A |
| Standard, insulating material | DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3) |
|---|---|
| Standard, shielding material | DIN EN 13602 Cu-ETP-A..B |
Classifications
| ETIM 6.0 | EC002599 |
|---|---|
| eClass 9.0 | 27-06-03-08 |
| eClass 10.0 | 27-06-03-08 |
| ETIM 7.0 | EC002599 |
|---|---|
| eClass 9.1 | 27-06-03-08 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Electrical Properties Of Cable
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
|---|---|
| Test voltage: wire-wire-shield | 2000 Veff, 50 Hz, 1 min |
| Loop resistance | 120 Ω/km |
| Resistance differential | 3 % |
| Insulation strength | 500,000 Ω |
| Signal propagation time | 5.3 ns/m |
| Operating voltage (UL rating) | 600 V undefined |
|---|---|
| Characteristic impedance | 100 ± 15 Ω at 1–100 MHz |
| Deviation | 40 ns/100m |
| Transfer impedance | 20 mΩ/m at 10 MHz |
| Capacity at 1 kHz | 52 nF/km |
| Speed | 180 m/min |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 70 °C |
| Operating temperature | -40 °C...70 °C |
| Installation temperature | -20 °C...60 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -50 °C |
| Storage temperature | -50 °C...70 °C |
