Weidmuller 1367100000 IE-CC-NM-RPSMAM-4M
- MPN: 1367100000
- PPN: WDM-1367100000
CAD
$227.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

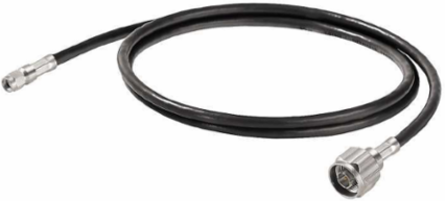

Antenna cable, Connection 1:, N-type male, Connection 2:, RP-SMA male, Length: 4 m
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Material sheath | LSFH (modified polyethylene) |
|---|---|
| Min. bending radius, repetitive | 58 mm (for max. 50 bending cycles) |
| Sheathing colour | black (similar to RAL 9005) |
| Min. bending radius, once only | 28 mm |
|---|---|
| Sheath diameter | 5.7 mm |
| UV-resistant | ISO 4892-2A |
Dimensions And Weights
| Length | 4 m |
|---|---|
| Net weight | 281.33 g |
| Length (inches) | 0.157 inch |
|---|
Environmental Conditions
| Operating temperature, max. | 85 °C |
|---|
| Operating temperature, min. | -40 °C |
|---|
Classifications
| ETIM 6.0 | EC001682 |
|---|---|
| eClass 9.0 | 27-06-03-10 |
| eClass 10.0 | 27-06-03-10 |
| ETIM 7.0 | EC001682 |
|---|---|
| eClass 9.1 | 27-06-03-10 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Technical Data
| Type of connection | Connection 1:, N-type male, Connection 2:, RP-SMA male |
|---|
Electrical Properties Of Cable
| Attenuation at 2.4 GHz | approx. 0.55 dB/m |
|---|---|
| Characteristic impedance | 50 Ohm +- 2 |
| Signal propagation time | 4.08 ns/m |
| Attenuation at 5 GHz | approx. 0.87 dB/m |
|---|---|
| Max. operating frequency | 6 Ghz |
