Weidmuller 1491190000 IE-CC-NM-SMAM-4M
- MPN: 1491190000
- PPN: WDM-1491190000
CAD
$107.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

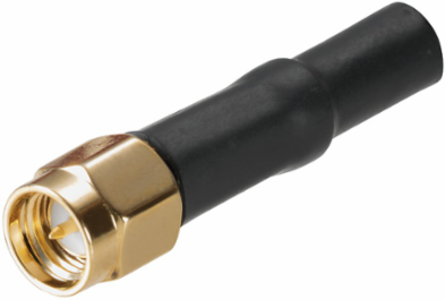

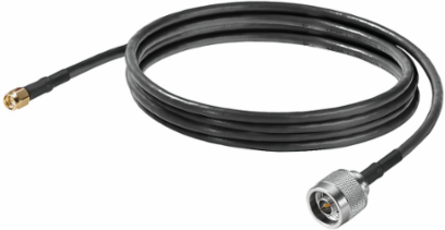

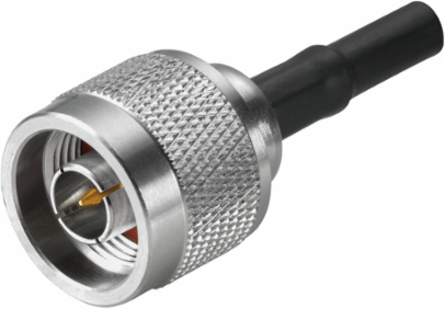

Antenna cable, Connection 1:, N-type male, Connection 2:, SMA plug, Length: 4 m
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Material sheath | Polyethylene |
|---|---|
| Min. bending radius, repetitive | 50,8 mm |
| UV-resistant | Yes |
| Min. bending radius, once only | 12,7 mm |
|---|---|
| Sheath diameter | 4.95 mm |
Dimensions And Weights
| Length | 4 m |
|---|---|
| Net weight | 192 g |
| Length (inches) | 0.157 inch |
|---|
Environmental Conditions
| Operating temperature, max. | 85 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -70 °C |
Classifications
| ETIM 6.0 | EC001682 |
|---|---|
| eClass 9.0 | 27-06-03-10 |
| eClass 10.0 | 27-06-03-10 |
| ETIM 7.0 | EC001682 |
|---|---|
| eClass 9.1 | 27-06-03-10 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Technical Data
| Type of connection | Connection 1:, N-type male, Connection 2:, SMA plug |
|---|
Electrical Properties Of Cable
| Characteristic impedance | 50 Ω |
|---|
