Weidmuller 1450670000 IE-FC-IP-2ST/2D9
- MPN: 1450670000
- PPN: WDM-1450670000
CAD
$21.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

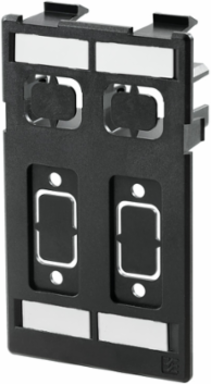

FrontCom, Insert plate, unshielded, 2x Data, 2x Signal
Documentation & Downloads
Specifications
General Data
| Material | Polycarbonate PC |
|---|
| Product type | Insert plate, unshielded |
|---|
Approvals
| Approvals | cURus, DNV GL |
|---|---|
| UL File Number Search | E223801 |
| ROHS | Conform |
|---|

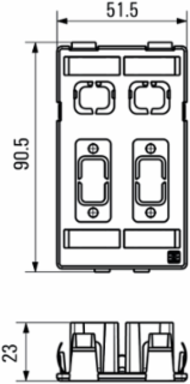

Dimensions And Weights
| Length | 90.5 mm |
|---|---|
| Width | 51.5 mm |
| Height | 23 mm |
| Net weight | 16.95 g |
| Length (inches) | 3.563 inch |
|---|---|
| Width (inches) | 2.028 inch |
| Height (inches) | 0.906 inch |
Standards
| Certificate No. (GERMLLOYD) | 13866-15 |
|---|
| Certificate No. (cURus) | E223801 |
|---|
Classifications
| ETIM 6.0 | EC000456 |
|---|---|
| eClass 9.0 | 27-18-28-06 |
| eClass 10.0 | 27-18-28-06 |
| ETIM 7.0 | EC000456 |
|---|---|
| eClass 9.1 | 27-18-92-90 |
| UNSPSC | 31-16-23-03 |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
