Weidmuller 1221010000 IE-BS-V01M-SCRJ-MM
- MPN: 1221010000
- PPN: WDM-1221010000
CAD
$99.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

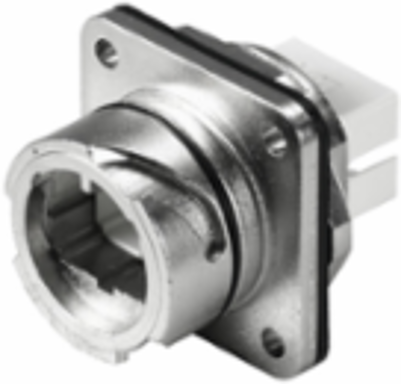

Flange FO, IP67, Multimode, POF
Documentation & Downloads
Specifications
General Data
| Colour | Miscellaneous |
|---|---|
| Connection 2 | SCRJ |
| Housing main material | Zinc diecast |
| Plugging cycles | 500 |
| Return loss (attenuation) | ≥ 30 dB |
| Connection 1 | SCRJ |
|---|---|
| Fibre type | Multimode, POF |
| Insertion loss | ≤ 0.4 dB |
| Protection degree | IP67 |
| Seal material | NBR |
Dimensions And Weights
| Net weight | 54.916 g |
|---|
Standards
| Connector standard | IEC 61076-3-106 Var. 1, IEC 61754-24 |
|---|
Classifications
| ETIM 6.0 | EC001122 |
|---|---|
| eClass 9.0 | 19-17-01-22 |
| eClass 10.0 | 19-17-01-22 |
| ETIM 7.0 | EC001122 |
|---|---|
| eClass 9.1 | 19-07-01-22 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
