Weidmuller 2661340000 IE-FCI-PWB-DK
- MPN: 2661340000
- PPN: WDM-2661340000
CAD
$41.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

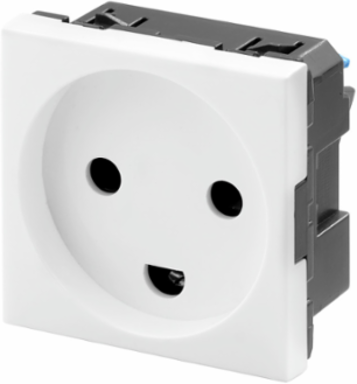

FrontCom, Insert Power large, Type K, Socket connector, DK
Documentation & Downloads
Specifications
General Data
| Connector face | Type K |
|---|---|
| Protection degree | IP20 |
| Insert type | Insert Power large |
|---|

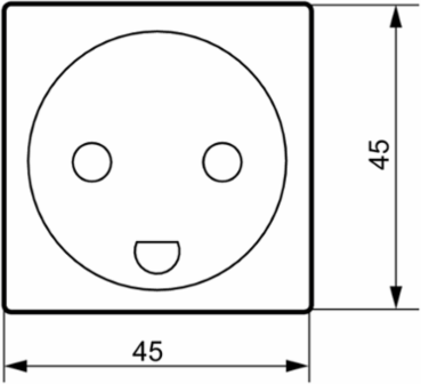

Dimensions And Weights
| Net weight | 28.09 g |
|---|
Clampable Conductors
| Conductor connection cross-section, extremely flexible with wire end ferrule | 1.5 ... 1.5 mm² |
|---|---|
| Conductor connection cross-section, flexible with wire end ferrule | 1.5 ... 1.5 mm² |
| Conductor connection cross-section, rigid | 1.5 ... 2.5 mm² |
| Type of connection | PUSH IN |
| Conductor connection cross-section, extremely flexible without wire end ferrule | 1.5 ... 2.5 mm² |
|---|---|
| Conductor connection cross-section, flexible without wire end ferrule | 1.5 ... 2.5 mm² |
| Stripping length | 13 mm |
Classifications
| UNSPSC | 31-16-23-03 |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Technical Data
| Housing main material | Polycarbonate PC |
|---|---|
| Rated voltage (AC) | 250 V |
| Rated current | 13 A |
|---|
Temperatures
| Operating temperature, max. | 40 °C |
|---|---|
| Operating temperature | -5 °C...40 °C |
| Operating temperature, min. | -5 °C |
|---|
