Weidmuller 8876370050 IE-FM5Z2VO0005MST0ST0X
- MPN: 8876370050
- PPN: WDM-8876370050
CAD
$54.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

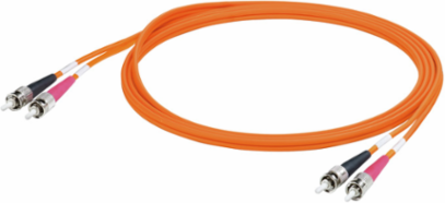

Patch cable, ST IP 20, ST IP 20, 50 µm, PVC, 5 m
Documentation & Downloads
Specifications

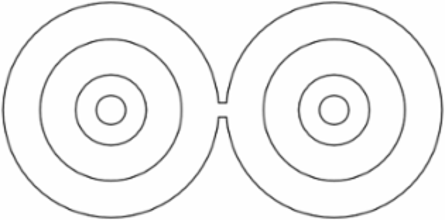

Cable Structure
| Core diameter | 50 µm |
|---|---|
| Cable layout | ZIPCORD |
| Material sheath | PVC |
| Sheath diameter | 3*6 mm |
|---|---|
| Standard designations | I-V(ZN)Y |
| Sheathing colour | orange |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 30 mm |
|---|
| Min. bending radius, repetitive | 60 mm |
|---|
Dimensions And Weights
| Length | 5 m |
|---|---|
| Net weight | 95 g |
| Length (inches) | 0.197 inch |
|---|
Plug
| Connector left | ST IP 20 |
|---|
| Connector right | ST IP 20 |
|---|
Standards
| Connector standard | IEC 61754-2 |
|---|
Classifications
| ETIM 6.0 | EC002607 |
|---|---|
| eClass 9.0 | 27-06-10-03 |
| eClass 10.0 | 27-06-10-03 |
| ETIM 7.0 | EC002607 |
|---|---|
| eClass 9.1 | 27-06-10-03 |
| UNSPSC | 30-21-18-01 |
Fibre-Optic
| Attenuation | ≤ 2.7 dB/km at 850 nm, ≤ 0.7 dB/km at 1300 nm |
|---|---|
| Fibre type | GOF, Multimode, OM2 |
| Bandwidth | ≥ 600 MHz*km at 850 nm, ≥ 1200 MHz*km at 1300 nm |
|---|
Temperatures
| Operating temperature, max. | 75 °C |
|---|---|
| Storage temperature, max. | 75 °C |
| Operating temperature | -5 °C...75 °C |
| Installation temperature | -5 °C...50 °C |
| Operating temperature, min. | -5 °C |
|---|---|
| Storage temperature, min. | -25 °C |
| Storage temperature | -25 °C...75 °C |
