Weidmuller

Weidmuller 8876350100 IE-FM5Z2VO0010MSD0SD0X

  • MPN: 8876350100
  • PPN: WDM-8876350100

CAD

$83.15

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

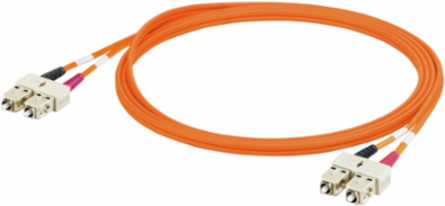

Pre-assembled patch cable, crossover, SC duplex IP 20, SC duplex IP 20, 50 µm, PVC, 10 m

Documentation & Downloads

Specifications

Cable Structure

Core diameter50 µm

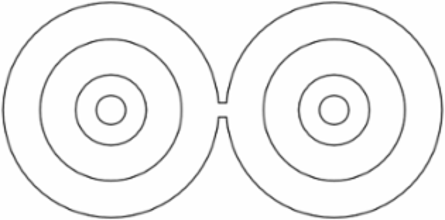

Cable layoutZIPCORD
Material sheathPVC
Sheath diameter3*6 mm
Standard designationsI-V(ZN)Y
Sheathing colourorange

Approvals

ROHSConform

Mechanical And Material Properties Of Cable

Min. bending radius, once only30 mm
Min. bending radius, repetitive60 mm

Dimensions And Weights

Length10 m
Net weight161 g
Length (inches)0.394 inch

Plug

Connector leftSC duplex IP 20
Connector rightSC duplex IP 20

Standards

Connector standardIEC 61754-4

Classifications

ETIM 6.0EC002607
eClass 9.027-06-10-03
eClass 10.027-06-10-03
ETIM 7.0EC002607
eClass 9.127-06-10-03
UNSPSC30-21-18-01

Fibre-Optic

Attenuation≤ 2.7 dB/km at 850 nm, ≤ 0.7 dB/km at 1300 nm
Fibre typeGOF, Multimode, OM2
Bandwidth≥ 600 MHz*km at 850 nm, ≥ 1200 MHz*km at 1300 nm

Temperatures

Operating temperature, max.75 °C
Storage temperature, max.75 °C
Operating temperature-5 °C...75 °C
Installation temperature-5 °C...50 °C
Operating temperature, min.-5 °C
Storage temperature, min.-25 °C
Storage temperature-25 °C...75 °C
IE-FM5Z2VO0010MSD0SD0X
IE-FM5Z2VO0010MSD0SD0X
