Weidmuller

Weidmuller 1220930000 IE-FM6D2UE0005MLD0LD0X

  • MPN: 1220930000
  • PPN: WDM-1220930000

CAD

$122.79

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

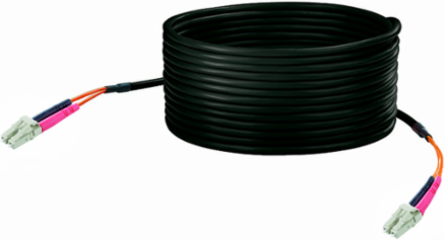

Dragline cable, LC-Duplex IP 20, LC-Duplex IP 20, 62.5 µm, PUR, 5 m

Documentation & Downloads

Specifications

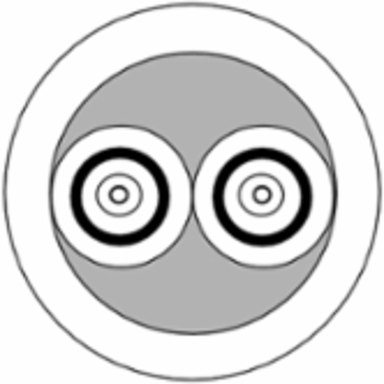

Cable Structure

Core diameter62.5 µm
Cable layoutBreak-out dragline
Sheathing colourblack
Sheath diameter6 mm
Material sheathPUR

Approvals

ROHSConform

Mechanical And Material Properties Of Cable

Min. bending radius, once only25 mm
Bending cycles100,000
Min. bending radius, repetitive77 mm

Dimensions And Weights

Length5 m
Net weight143 g
Length (inches)0.197 inch

Plug

Connector leftLC-Duplex IP 20
Connector rightLC-Duplex IP 20

Standards

Connector standardIEC 61754-20

Classifications

ETIM 6.0EC002607
eClass 9.027-06-10-03
eClass 10.027-06-10-03
ETIM 7.0EC002607
eClass 9.127-06-10-03

Fibre-Optic

Attenuation2.7 dB/km at 850 nm, ≤ 0.5 dB/km at 1300 nm
Fibre typeGOF, Multimode, OM1
Return loss (attenuation)≥ 30 dB
Bandwidth200 MHz*km at 850 nm, 500 MHz*km at 1300 nm
Insertion loss≤ 0.4 dB

Temperatures

Operating temperature, max.80 °C
Storage temperature, max.80 °C
Operating temperature-40 °C...80 °C
Installation temperature-20 °C...60 °C
Operating temperature, min.-40 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...80 °C
IE-FM6D2UE0005MLD0LD0X
IE-FM6D2UE0005MLD0LD0X
