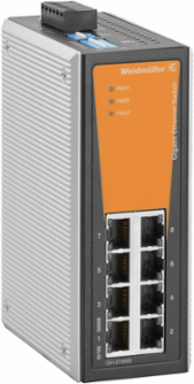

Weidmuller 1286860000 Unmanaged Network Switch 8 RJ45 Ports, IP30, -40 C to 75 C Operating Temp
- MPN: 1286860000
- PPN: WDM-1286860000
CAD
$1411.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Network switch, unmanaged, Gigabit Ethernet, Number of ports: 8 * RJ45 10/100/1000BaseT(X), IP30, -40 °C...75 °C
Documentation & Downloads
Specifications
Approvals
| Approvals | CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC, KOREANCERT |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Mtbf
| MTBF | 325,000 hrs |
|---|
| Database | Telcordia (Bellcore), GB |
|---|
Dimensions And Weights
| Width | 53.6 mm |
|---|---|
| Height | 135 mm |
| Depth | 105 mm |
| Net weight | 850 g |
| Width (inches) | 2.11 inch |
|---|---|
| Height (inches) | 5.315 inch |
| Depth (inches) | 4.134 inch |
Environmental Conditions
| Humidity | 5 to 95 % (non-condensing) |
|---|---|
| Operating temperature, min. | -40 °C |
| Storage temperature, min. | -40 °C |
| Operating temperature, max. | 75 °C |
|---|---|
| Storage temperature, max. | 85 °C |
Guarantee
| Time interval | 5 years |
|---|
Classifications
| ETIM 6.0 | EC000734 |
|---|---|
| eClass 9.0 | 19-17-01-06 |
| eClass 10.0 | 19-17-04-02 |
| ETIM 7.0 | EC000734 |
|---|---|
| eClass 9.1 | 19-17-01-06 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Switch Characteristics
| Bandwidth backplane | 16 Gbps |
|---|---|
| MAC table size | 8 K |
| Jumbo frame support | up to 9.6 KB |
|---|---|
| Packet buffer size | 1,408 Kbit |
Technical Data
| Housing main material | metal |
|---|---|
| Type of mounting | DIN rail, Panel (with optional mounting kit) |
| Protection degree | IP30 |
|---|
Emc Conformity And Approvals
| EMC standards | EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 Ghz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 |
|---|---|
| Free fall | According to IEC 60068-2-32 |
| Ship use | DNV-GL |
| Vibration | according to IEC 60068-2-6 |
| Explosive risk zone | UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T4 Gc |
|---|---|
| Security | UL508, EN60950-1 |
| Shock | according to IEC 60068-2-27 |
Interfaces
| Alarm contact | 1 relay output with a current capacity of 1 A at 24 V DC |
|---|---|
| LED indicator | Power LED: PWR1, PWR2, FAULT, 10/100/1000M |
| RJ45 ports | 10/100/1000BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port |
| DIP switch | Port surveillance, Broadcast storm protection enable/disable, Enable/disable jumbo frame support, Activate/deactivate IEEE 802.3az energy-efficient Ethernet |
|---|---|
| Number of ports | 8 * RJ45 10/100/1000BaseT(X) |
Power Supply
| Connection type | 1 removable 6-pin terminal block |
|---|---|
| Reverse polarity protection | Available |
| Supply voltage, min. | 9.6 V DC |
| Current consumption | 0.32 A at 24 V |
|---|---|
| Supply voltage, max. | 60 V DC |
| Voltage supply | 12/24/48 V DC, 2 redundant inputs |
Technology
| Data switching | Store and Forward |
|---|---|
| Standard | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for flow control, IEEE 802.3az Energy-Efficient Ethernet |
| Flow control | IEEE 802.3x flow control, Back pressure flow control |
|---|
