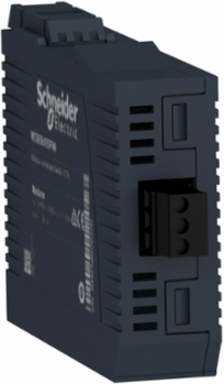

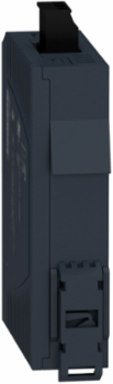

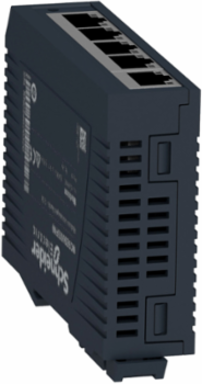

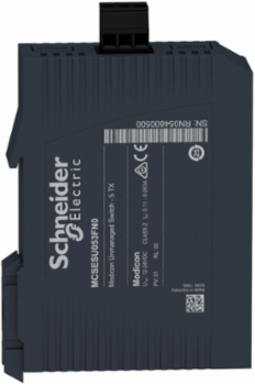

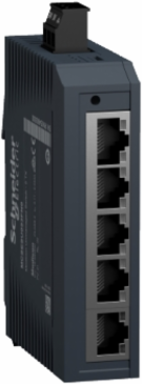

Schneider Electric MCSESU053FN0 Modicon Unmanaged Network Switch, 5 Copper Ports, 1.3W Power, IP30
- MPN: MCSESU053FN0
- PPN: SCH-MCSESU053FN0
CAD
$209.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Modicon Networking range, an offer of Modicon Standard Unmanaged Switch. This unmanaged switch comes with Ethernet TCP/IP protocol. It comes with 5 transmission ports copper cable. It provides simple connectivity for multiple Ethernet devices and gives customers more options with industrial grade application. This product works at a power consumption of 1.3W and a rated voltage from 12V to 24V DC. It has a removable 3-pin power supply connector . Its dimensions are 26mm (width) x 102mm (height) x 79mm (depth) and weighs 0.125 kg. It has shielded connectors which is suitable for small, isolated networks or system with light network traffic and network with low complexity levels. It is CE, UL, RCM, UKCA, EAC certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Features
- Built with a rugged metal housing and a fanless thermal management system, this 5-port unmanaged switch is engineered to operate reliably in extreme temperatures ranging from 0 C to 60 C. This industrial-grade durability eliminates the common failures associated with standard commercial-grade networking gear, ensuring your Modbus/TCP or EtherNet/IP communications stay online despite heavy vibration and electrical noise on the factory floor.
- Featuring five 10/100 Base-TX copper ports with auto-MDI/MDIX sensing, this switch provides seamless plug-and-play connectivity for your automation cell. It allows for high-speed data exchange between Programmable Logic Controllers (PLCs), Human-Machine Interfaces (HMIs), and remote I/O, streamlining your network architecture without the need for complex software configuration or managed switch overhead.
- Designed with a slim, space-saving footprint, this unit snaps directly onto standard 35mm DIN rails, making it an ideal solution for high-density electrical enclosures where "real estate" is at a premium. The vertical orientation and accessible front-facing ports allow for clean cable management and faster integration into existing Schneider Electric EcoStruxure architectures or third-party control panels.
- Equipped with dual power inputs, this switch allows you to connect two independent DC power sources to ensure continuous network uptime. If the primary power supply fails, the redundant backup takes over instantly, preventing costly communication timeouts and keeping your critical industrial processes running safely without interruption.
- This switch is fully CE, UL, and RCM certified, meeting the most stringent global standards for electromagnetic compatibility (EMC) and industrial safety. By using genuine Schneider Electric networking hardware, you ensure full compatibility with industrial automation standards, simplifying the commissioning process and guaranteeing long-term system stability in mission-critical applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, Costa Rica, Germany, France, Mexico, United States
Depth79 mm
Communications & Management Attributes
- Communication Port Protocol
- Ethernet TCP/IP
Complementary Attributes
- Integrated Connection Type
- shielded RJ45 copper cable
- Maximum Number Of Switches In Cascade
- unlimited
Maximum Cable Distance Between Devices100 m copper cable
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Local Signalling
- 1 LED (green) for power supply, 1 LED per channel (yellow) for data rate (ETH LINK), 1 dual colour LED (green/yellow) for link status
- Certificate Agency
- CE, UL, RCM, EAC, UKCA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.2273260721749266
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.8 kg CO2 eq., 0.750277109555157
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=ESXP1G003EN_web.pdf, ESXP1G003EN
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- N
- Device Type
- Networking and Cable Solutions - Networking Devices
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Ethernet Cabling System
- TF switches
- Number Of Port
- 5
- Port Ethernet
- 10/100BASE-TX - 5 copper cable
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon Networking
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Transmission Support Medium
- twisted shielded pairs cable CAT 5E copper cable
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 113.88
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Width Nominal
- 26 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- 0.06
- Customs Code
- 8517620020
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
MarkingCE, UL, RCM
Carbon Footprint Of The Distribution Phase [A4]0.01993822331778865, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0023696518221835126, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]111 kg CO2 eq., 111.45087184642956
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2003018EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2137
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Electrical Connectionremovable connector 3 ways power supply
Mounting Support35 mm symmetrical DIN rail
Number Of Rj45 Port5 10/100 Mbps
Power Consumption In W1.3 W
Product Or Component TypeEthernet TCP/IP unmanaged switch
ReturnabilityYes
Supply Voltage Limits9.6-32 V DC SELV
Total Lifecycle Carbon Footprint112 kg CO2 eq.
Pep CodeENVPEP2003018_V2
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Europe, EU-27
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Height Nominal102 mm
[Us] Rated Supply Voltage12...24 V
Package Weight(Lbs)262.000 g
Warranty (In Months)18
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]0.06
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2003018_V2
- Ip Degree Of Protection
- IP30
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 10-95 % non-condensing
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Carbon Footprint112.45078290329963
Circularity ProfileENVEOLI2003018EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2003018_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Ethernet TCP/IP unmanaged switch
Range Of ProductModicon Networking
ETIM
- ETIM 8
- EC000734
ETIM 9EC000734
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
