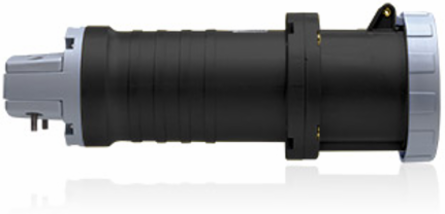

Leviton 460C5W 60 Amp 3-Phase North American Pin & Sleeve Connector, IP67 Watertight, Black

MPN: 460C5W
PPN: LEV-460C5W

Spec sheet

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$636.64/ EA

Qty:

Loading add to cart quantity...

Specifications

Standards and Certifications

Warranty: 2-Year Limited

CE Marking: Per low voltage directives 73/23/EEC, 93/68/EEC

UL Listed: 1682 and 1686

CSA CertifiedC22.2 No 182.1

IEC Rating60309-1 and 60309-2

Material Specifications

Internal Cord Clamp Assembly: Thermoplastic

Sleeve Spring: Stainless Steel

Terminal Screws: Steel

Body Material: Valox 357

Gland Cap: Valox 357

Cover with Arm: Valox 357

Internal Screws: Zinc-plated steel

Cover EyeletNickel-Plated Brass

Arm SpringPerformance Grade Stainless Steel

Grommet/GasketChloroprene

External ScrewsAcid-Proof S/S

External Cord Clamp AssemblyValox 357

Phase and Ground SleevesBrass

Contact CarrierReinforced Nylon

Mechanical Specifications

Minimum Withdrawal Force: 15lbs

Cable Secureness: Force: 150lb, Torque: 1.0 ft-lb, Max Disp: <= 3/32"

Crush Test: 250lbs for 1 min after -25°C for 6 hrs

Cord Range.670 - 1.625

Impact ResistanceDrop from 30" 8 times after conditioning to -25°C for 6 hrs

Product Features

Color: Black

Configuration: North American

IEC Rating: 60309-1 and 60309-2

Device TypeConnector

Country Of OriginPlease Contact Customer Service.

Environmental Specifications

Flammability: Rated V-0 per UL 94

Moisture Resistance: Per UL 1682, immersed for 24 hours in 5cm of 25°C water

Corrosion ResistanceFerrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min

IP RatingIP67/IP69K

Electrical Specifications

Amperage: 60 A

Dielectric Voltage: 3000V for 1 min.

Temperature Rise: Max 30°C temp rise at full-rated current after 50 cycles of OL at 150% rated current

Pole: 3

Voltage: 600 VAC

Wire4

Current InterruptingCertified for current interrupting at full rated current

EnduranceUp to 1000 connects and disconnects, under load, at full rated current and voltage

Insulation Resistance500V for 1 min; >= 5MΩ

Phase3-Phase
