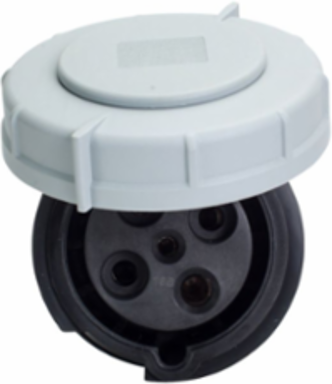

Eaton AH460C5W Eaton Arrow Hart pin and sleeve connector — Voltage Rating: 600 V, Amperage Rating: 60A, Allowable Wire Size: #8-2 AWG, #10-2 AWG (ground), #12-16 AWG (pilot), Number Of Wires: Grounding 4
- MPN: AH460C5W
- UPC: 040893619798
- PPN: COW-AH460C5W
CAD
$347.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot), 60A, 3Ø 600V, Back wire, Nickel plated brass, IP67, Nylon, 3-pole, 4-wire, 0.66-1.5in (1.68-3.81cm), Female, 20 HP, 3PH
Specifications
Key Specifications
- Length
- 11.5 in
- Width
- 5.125 in
- Product Type
- Pin and Sleeve connector
- Amperage Rating
- 60A
- Contact Material
- Nickel plated brass
- Number Of Wires
- Grounding 4
- Cord Diameter
- 0.66-1.5in (1.68-3.81cm)
- Gender
- Female
- Allowable Wire Size
- #8-2 AWG, #10-2 AWG (ground), #12-16 AWG (pilot)
- Design Type
- Pin and sleeve connector
- Product Series
- Arrow Hart Pin And Sleeve Iec 60309 Devices
Height5.125 in
Weight2.092 lbs
TypeConnector
Voltage Rating600 V
ApplicationIndustrial, food and beverage, wastewater treatment
Number Of PolesThree-pole
PhaseThree-phase
Horsepower20 hp
Torque Rating28 lbf-inch
Face/Body MaterialNylon
