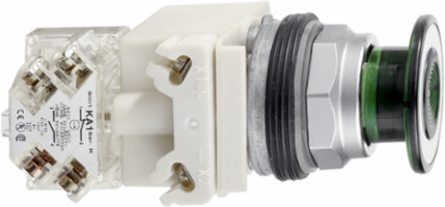

Schneider Electric 9001KR9P38LGG Illuminated Push-Button Head, 30 mm, Green LED, Metal, 2 Positions, Push-Pull
- MPN: 9001KR9P38LGG
- UPC: 785901058076
- PPN: SCH-9001KR9P38LGG
CAD
$374.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Enhance your automation and control systems with the illuminated push-button head from Schneider Electric. Featuring a vivid green LED and crafted from durable metal, this 30 mm design ensures visibility and reliability in a variety of environments. With a dual-position push-pull mechanism, it allows for straightforward and intuitive operation, making it ideal for applications requiring clear feedback and efficient functionality. This component is not only practical but also a robust choice for any panel builder looking to improve user interface and control capabilities.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Size
- 30 mm
Light Source Colorgreen
Important Information Attributes
- Light Source
- LED, incandescent
- Type Of Operator
- push-pull, stay put
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Bulb Base
- BA 9s
- Contacts Type And Composition
- without contact block
- Electrical Shock Protection Class
- class II conforming to IEC 60536
- Mechanical Durability
- 5000000 cycles
- Operating Position
- any position
- Operator Position Information
- 2 positions
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- No
- Shock Resistance
- 50 gn IEC 60068-2-27
- Vibration Resistance
- 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Light Source Color
- green
- [Us] Rated Supply Voltage
- 120 V120 V AC/DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509035
Operator Profilemushroom Ø 41 mm, green mushroom Ø 41 mm, unmarked
Certificate AgencyUL 508, NEMA
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bezel Materialmetal
Compatibility Code9001K
Device Short Name9001K
Light Block Supplydirect
Mounting Diameter30 mm
Operator Additional Informationscrew-on plastic
Overvoltage Categoryclass II conforming to IEC 60536
Product Or Component Typehead for illuminated push-button
Range Of ProductHarmony 9001K
Shape Of Signaling Unit Headround
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2503027EN
Cap/Operator Or Lens Colourgreen
Package Weight(Lbs)226.796 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP65/IP66
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503027EN
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- head for illuminated push-button
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
