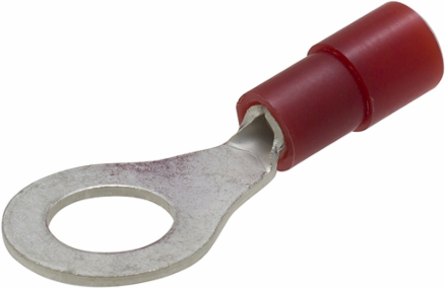

ILSCO NRBR-18-14-P50 ILSCON Ring Terminal, Conductor Range 18-22, 1/4in Bolt Size, Nylon Insulated, Red Color Code, Pack of 50
- MPN: NRBR-18-14-P50
- UPC: 783669208450
- PPN: ILC-NRBR-18-14-P50
CAD
$43.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ILSCON Ring Terminal, Conductor Range 18-22, 1/4in Bolt Size, Nylon Insulated, Red Color Code, Pack of 50
Documentation & Downloads
Specifications
Key Specifications
| Height | 2.88 in |
|---|---|
| Weight | 0.2155 lbs |
| Length | 3.5 in |
|---|---|
| Width | 1.21 in |
Voltage
| Voltage Rating | 600 V |
|---|
Dimensions
| Height BX (IN) | 7.75 |
|---|---|
| Weight BX (LB) | 12.933 |
| Maximum Wire Insulation Diameter (IN) | 0.157 |
|---|---|
| Width BX (IN) | 9.5 |
Testing Standards
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
|---|---|
| UL / CULUS Specification | UL/cUL 486A/B Listed |
| UL Control Number | 20U0 |
|---|---|
| UL File Number | E6207 |
Additional Class Attributes
| Conductor Entry | Funnel wire |
|---|---|
| Construction Type | Brazed |
| Installation Tooling | ILST-22K |
| Insulation Flared End | Yes |
| Mounting Hole Type | Thru |
| Number of Mounting Holes | 1 |
| Connection | Compression |
|---|---|
| ILSCOs Die Index Number | A |
| Installing Dies | Die Set A |
| Insulation Grip | Yes |
| Number of Conductors | 1 |
| Tongue Type | Ring |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Fully Insulated | No |
| Material | Copper |
| Connector Finish | Tin |
|---|---|
| Insulation | Nylon |
Conductor Ranges
| Conductor Range CU Solid (Primary, run, main, line) | 18 Sol - 22 Sol |
|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 18 Str - 22 Str |
|---|
General
| Bag Quantity | 50 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366920845 |
| Carton Quantity Description | STD PACK QTY 10 |
|---|---|
| NEMA Code | S-588-3 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 1/4 |
|---|
Color
| Color | Silver, Red |
|---|
Environment and Temperature
| Halogen Free | Yes |
|---|
| Temperature Rating | 105°C |
|---|
