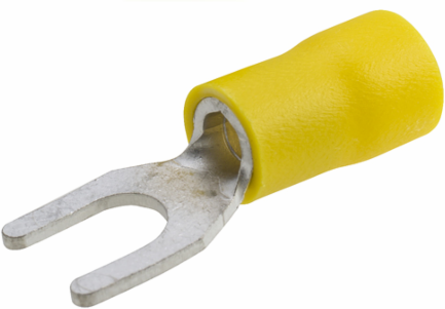

ILSCO VSBR-10-10-P25 ILSCON Spade Terminal, Conductor Range 10-12, #10 Bolt Size, Vinyl Insulated, Yellow Color Code, Pack of 25
- MPN: VSBR-10-10-P25
- UPC: 783669216073
- PPN: ILC-VSBR-10-10-P25
CAD
$15.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ILSCON Spade Terminal, Conductor Range 10-12, #10 Bolt Size, Vinyl Insulated, Yellow Color Code, Pack of 25
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.88 in
- Weight
- 0.1763 lbs
Length3.5 in
Width1.21 in
Voltage
- Voltage Rating
- 600 V
Dimensions
- Height BX (IN)
- 7.75
- Mounting Bolt/Stud Size (mm)
- 254
- Width BX (IN)
- 9.5
Maximum Wire Insulation Diameter (IN)0.252
Weight BX (LB)10.5783
Testing Standards
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL/cUL 486A/B Listed
UL Control Number20U0
UL File NumberE6207
Additional Class Attributes
- Conductor Entry
- Funnel wire
- Construction Type
- Brazed
- Installing Dies
- Die Set A
- Number of Mounting Holes
- 1
ConnectionCompression
Installation ToolingILST-22K
Insulation Flared EndYes
Tongue TypeSpade
Material and Finish
- Connector Finish
- Tin
- Insulation
- Vinyl
Fully InsulatedNo
MaterialCopper
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 12 Sol
Conductor Range CU Stranded (Primary, run, main, line)10 Str - 12 Str
General
- Bag Quantity
- 25
- Dual Rated
- No
- UPC Code
- 78366921607
Carton Quantity DescriptionSTD PACK QTY 10
NEMA CodeS-588-3
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- #10
Color
- Color
- Yellow, Silver
Environment and Temperature
- Halogen Free
- No
Temperature Rating75°C
