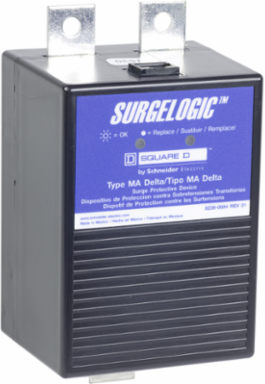

Square D MA5IMA20 Surge mod IMA - 200kA - 480VAC delta - 3P3W - T2 - CSA
Square D MA5IMA20 Surge mod IMA - 200kA - 480VAC delta - 3P3W - T2 - CSA
- MPN: MA5IMA20
- PPN: SCH-MA5IMA20
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1436.09/ EA
Description
Surge mod IMA - 200kA - 480VAC delta - 3P3W - T2 - CSA
Specifications
Complementary
- Height
- 158.8 mm
- Connections - Terminals
- terminals
- Mounting Support
- panel mounting
- [Uc] Maximum Continuous Operating Voltage
- 550 V
- Wiring Configuration
- 3-wire
- Depth
- 68.3 mm
- Network Number Of Phases
- 3 phases
Local Signallingstatus LED green normal operation
Short-Circuit Protection200 kA
Provided Equipmentalarm enable/disable switch
Surge Current200 kA
Width82.8 mm
Nominal Discharge Current20 kA
[Ue] Rated Operational Voltage480 V delta AC
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2002011EN
Environmental DisclosureENVPEP2002011EN
Eu Rohs DirectiveCompliant with Exemptions
Specifications
- Range Of Product
- Surgelogic
- Product Or Component Type
- surge protection module
Accessory / Separate Part Categoryreplacement part
Device Short NameIMA
Environment
- Nema Degree Of Protection
- NEMA 2
- Standards
- UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285
Enclosure Materialblack plastic
