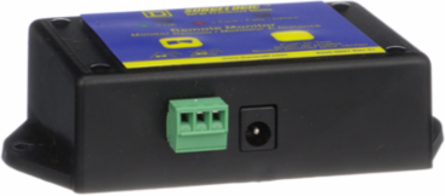

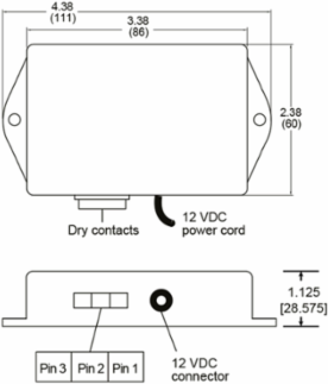

Square D TVS12RMU Surge Protection Device with 12V Input Voltage, 2.38 Inch Height, 4.38 Inch Width
- MPN: TVS12RMU
- UPC: 785901256748
- PPN: SCH-TVS12RMU
- UNSPSC: 39121112
CAD
$1472.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Advanced power and equipment protection for Square D™ NQ panelboards, TVS12RMU, engineered with input from contractors, the innovative Surgeon device saves time and money normally required when SPDs are factory-installed on any project. Equipped with LED status signal light sound alarm and remote control for convenient use Suitable for applications in low voltage systems, building and industrial automation and control also for critical power, cooling and racks. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.
Features
- Comes in a space-saving design and DOE 2016 fully compliant
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|
| Weight | 299.371 g |
|---|
Physical Attributes
| Cable Length | 72 in |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM |
|---|---|
| Device Short Name | IMA, EMA, EBA, HWA |
| Carbon Footprint Of The Distribution Phase A4 | 0.03835652036284171, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.00036302854885606156, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 85 kg CO2 eq., 84.52254186532025 |
| Local Publishable Date | 2025-11-13 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2508025EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2531 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Surgelogic |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 88 kg CO2 eq. |
| Database Version | 2024-01 |
| Height Nominal | 2.38 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 69 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer |
|---|---|
| Local Signalling | 1 LED green normal operation1 LED red error, alarm error |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.5 kg CO2 eq., 0.5388009777293435 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 3 kg CO2 eq., 3.3401336420208025 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Energy Efficiency Optimized | False |
| Product Or Component Type | surge protection device |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Connections Terminals | terminals dry contacts 22 AWG...14 AWG |
| Data Source | extrapolated product |
| Width Nominal | 4.38 in |
| Customs Code | 8536308000 |
| Functional Unit Description | Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 175.2 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 88.44019603398209 |
| Environmental Disclosure | ENVPEP2508025EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-08-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2508025EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2508025EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | surge protection device |
|---|
| Range Of Product | Surgelogic |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Voltage | 12 V PWR |
|---|
