Klein Tools 85191HD Impact-Rated Flip Socket Conduit Reamer Driver
- MPN: 85191HD
- UPC: 092644851414
- PPN: KLT-85191HD
- UNSPSC: 27111701
CAD
$46.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

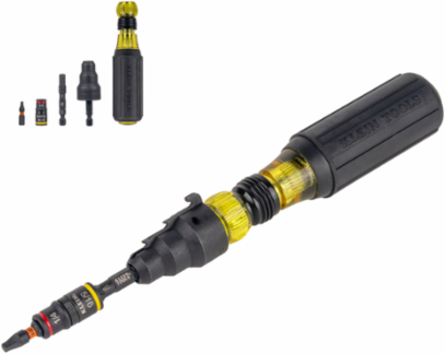

Klein Tools 85191HD Flip Socket Conduit Reamer Driver reams and smooths 1/2-inch (13mm), 3/4-inch (19mm), and 1-inch (25mm) conduit without requiring component removal. This tool features an improved leaf spring design that provides a secure grip, while the auto-lock mechanism securely connects to quick-connect handles, with a simple collar pull-back to release. The 3-in-1 flip socket functions as a magnetic bit holder, and the Cushion-Grip™ handle provides extra torque and comfort.
Features

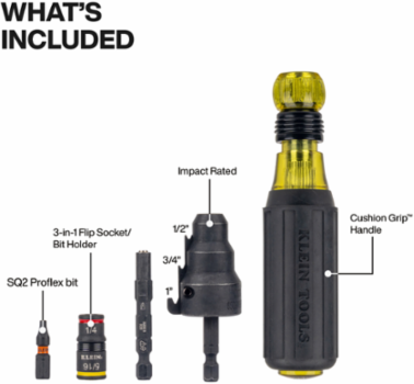

- All-in-one solution combines 3-in-1 conduit reamer with integrated quick-connect handle
- Efficiently reams and smooths 1/2-Inch, 3/4-Inch, and 1-Inch conduit

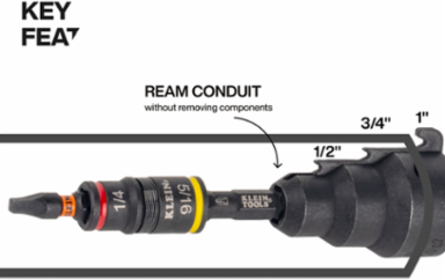

- Innovative design allows conduit reaming without removing flip sockets or bits, significantly reducing task time

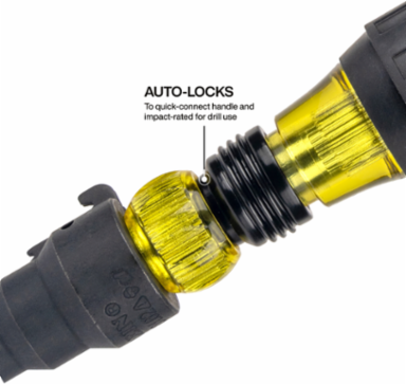

- Automatically locks into quick-connect handle; pull collar back to release for secure, convenient operation

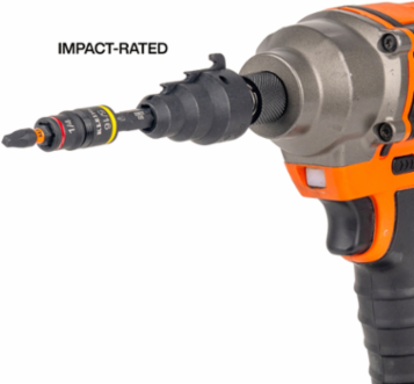

- Impact-rated construction withstands the high torque of impact drivers
- Improved leaf spring design enhances shaft connection to provide a secure grip that won't fall out while remaining easy to insert and remove
- Replaceable reaming blade held with 1/16-Inch hex socket set screw; replacement blades (Cat. No. 19353) available

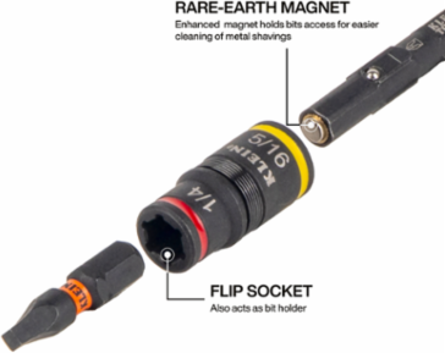

- 3-in-1 Flip Socket, SQ #2 Bit
Documentation & Downloads
Specifications
Key Specifications
| Application | Electrical Metallic Tubing (EMT) |
|---|---|
| Material | Steel |
| Shank Length | 2.5" (6.4 cm) |
| Conduit Size | 1/2", 3/4", 1" (1.3 cm, 1.9 cm, 2.5 cm) |
| Overall Height | 1.2 Inch (3 cm) |
| Blade Length | 3.3 cm (1.29 Inch) |
| Overall Width | 1.26 Inch (3.2 cm) |
| Width | 1.2550 in |
| Weight | 0.5440 lbs |
| Type | Conduit Reamer Driver |
|---|---|
| Tip Size | 5/16" (7.9 mm) |
| Blade Finish | Black Oxide |
| Blade Material | Steel |
| Blade Width | 0.1 cm (0.03 Inch) |
| Overall Length | 19.1 cm (7.5 Inch) |
| Height | 1.2030 in |
| Depth | 9.3600 in |
