Klein Tools 85091HD Impact-Rated Flip Socket Conduit Reamer
- MPN: 85091HD
- UPC: 092644851421
- PPN: KLT-85091HD
- UNSPSC: 27111701
CAD
$31.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Klein Tools Cat. No. 85091HD Flip Socket Conduit Reamer reams and smooths 1/2-Inch, 3/4-Inch, and 1-Inch conduit without requiring component removal. This tool features an improved leaf spring design that provides a secure grip, while the auto-lock mechanism securely connects to quick-connect handles, with a simple collar pull-back to release. The 3-in-1 flip socket functions as a magnetic bit holder, with enhanced design for easier cleaning of metal shavings.
Features
- Pipe reamer efficiently reams and smooths 1/2-Inch, 3/4-Inch, and 1-Inch conduit

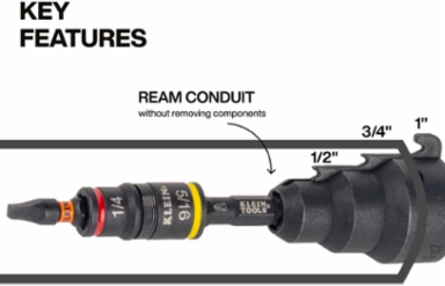

- Innovative design allows conduit reaming without removing flip sockets or bits, significantly reducing task time

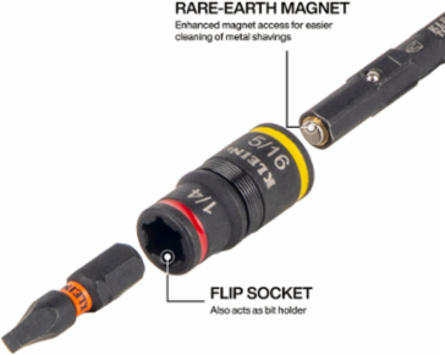

- Integrated magnetic bit holder accommodates both 1/4-inch and 3/16-inch bits for versatile application

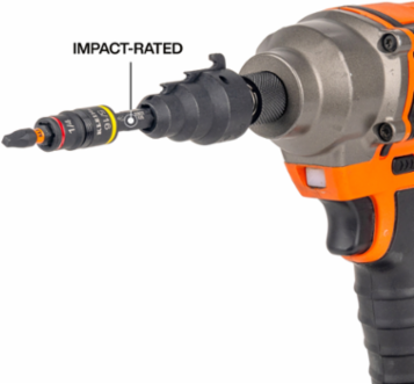

- Impact-rated construction designed to withstand the high torque of impact drivers
- Improved leaf spring design enhances shaft connection to provide a secure grip that won't fall out while remaining easy to insert and remove

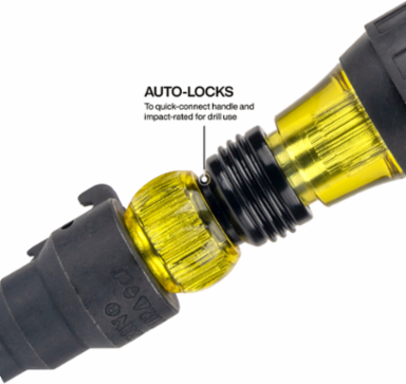

- Automatically locks into quick-connect handle; pull collar back to release for secure, convenient operation
- Replaceable reaming blade held with 1/16-Inch hex socket set screw; replacement blades (Cat. No. 9353) available

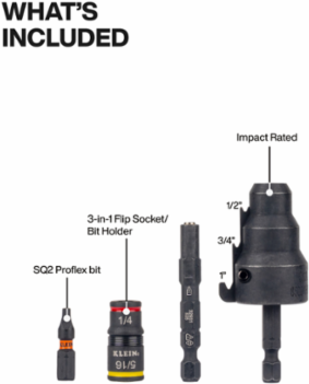

- 3-in-1 Flip Socket, SQ #2 Bit
Documentation & Downloads
Specifications
Key Specifications
| Type | Conduit Reamer Drill Head for 1/2", 3/4", 1" |
|---|---|
| Conduit Size | 1/2", 3/4", 1" (1.3 cm, 1.9 cm, 2.5 cm) |
| Tip Size | Square #2 |
| Material | Steel |
| Overall Height (Inch) | 1 |
| Blade Length (cm) | 3.3 |
| Overall Length (cm) | 13.3 |
| Overall Height (cm) | 2.5 |
| Blade Length (Inch) | 1.29 |
| Weight (oz) | 5.3 |
| Height | 1.0000 in |
| Depth | 5.2200 in |
| Application | Electrical Metallic Tubing (EMT) |
|---|---|
| Shank Length | 2.15" (5.5 cm) |
| Blade Material | Steel |
| Blade Finish | Black Oxide |
| Blade Width (cm) | 0.1 |
| Blade Width (Inch) | 0.03 |
| Weight (g) | 150 |
| Overall Width (Inch) | 1.2 |
| Overall Length (Inch) | 5.22 |
| Overall Width (cm) | 3 |
| Width | 1.2030 in |
| Weight | 0.3110 lbs |
