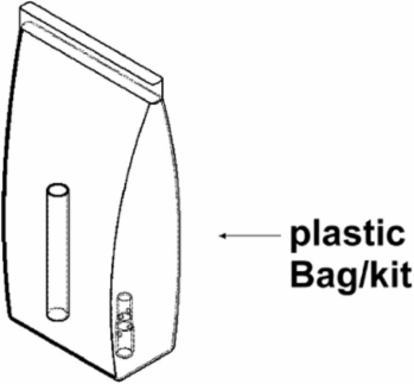

Burndy YSR25FX2CFXLTCKITC Compression Reducer/Splice Kit, 1/0 AWG to 2 AWG, 600V, 35 kV Rated
- MPN: YSR25FX2CFXLTCKITC
- UPC: 781810358313
- PPN: BUR-10035788
CAD
$78.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Compression CU Reducer/Splice kit, W/InspWindow, Barrel A:1/0AWG(Flex-Str) Barrel B:#2AWG(Flex-Str), Standard Barrel, Electro-Tin Plated
Documentation & Downloads
Specifications
Additional
| Wire Size Range | 1/0 AWG to 2 AWG |
|---|---|
| Voltage | 600 V |
| Dimension - B Length | 1.04 in / 1 in fraction |
| Die Index - Element A | 12 |
| Die Index Run Side | 12 |
| Material | Copper |
| Connector Type | Reducer; Splice |
| Feature - Barrel Type | Standard |
| Color Code - Side B | Brown |
| UL Listed | No |
| Certification - ETL | No |
| Certification - cULus | No |
| Voltage Rating | 35 kV |
|---|---|
| Dimension - Length Overall | 2.19 in / 54 mm |
| Dimension - Strip Length | 1.01 in |
| Die Index - Element B | 10 |
| Die Index Tap Side | 10 |
| Plating | Tin - Electro Plated |
| Feature - Barrel Style | Skived |
| Color Code - Side A | Pink |
| Certification - RoHS Compliance Status | CM |
| Certification - CSA Approved | No |
| Certification - UL Recognized | No |
