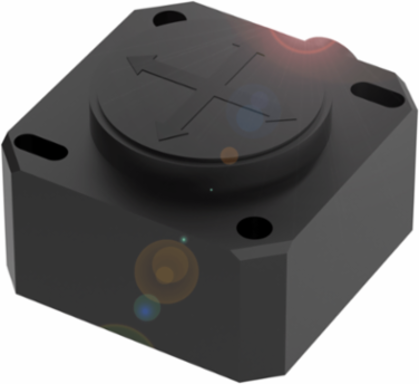

Balluff BSI Q41K0-XA-MYS030-S92 Inclination sensors with two measuring axes BSI Q41K0-XA-MYS030-S92

Inclination sensors with two measuring axes BSI Q41K0-XA-MYS030-S92
  • MPN: BSI Q41K0-XA-MYS030-S92
  • PPN: BAL-BSI0010

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$455.25/ EA

Description

MEMS-based inclination sensors are best suited for monitoring the position of machine components in two axes.

Specifications

Specifications

Measuring principle
MEMS
Measuring range
-30-30°
Interface
2x Analog, voltage 0…10 V
Accuracy
±0.6°
Housing material
Plastic
IP rating
IP67
Measuring axes2
Operating voltage Ub12-30 VDC
Resolution≤ 0.09 °
ConnectionConnector, M12x1
Ambient temperature-25-85 °C
Approval/ConformityCE, cULus, WEEE

Downloads
