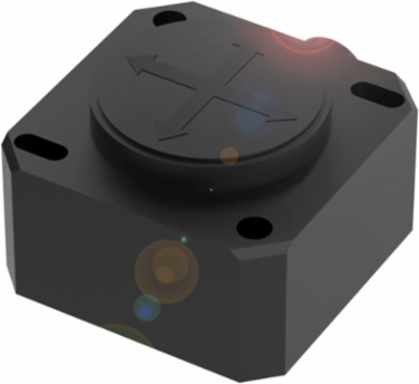

Balluff BSI Q41K0-XA-MYS045-S92 Inclination sensors with two measuring axes BSI Q41K0-XA-MYS045-S92
- MPN: BSI Q41K0-XA-MYS045-S92
- PPN: BAL-BSI0013
CAD
$468.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
MEMS-based inclination sensors are best suited for monitoring the position of machine components in two axes.
Documentation & Downloads
Specifications
Key Specifications
| Measuring principle | MEMS |
|---|---|
| Measuring range | -45-45° |
| Interface | 2x Analog, voltage 0…10 V |
| Accuracy | ±0.8° |
| Housing material | Plastic |
| IP rating | IP67 |
| Measuring axes | 2 |
|---|---|
| Operating voltage Ub | 12-30 VDC |
| Resolution | ≤ 0.09 ° |
| Connection | Connector, M12x1 |
| Ambient temperature | -25-85 °C |
| Approval/Conformity | CE, cULus, WEEE |
