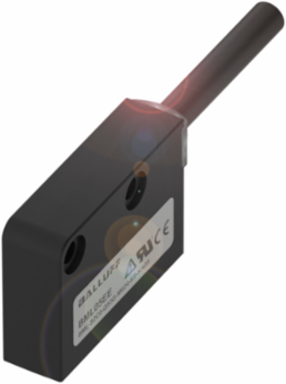

Balluff BML-S2C0-Q53K-M600-K0-KA10 Incremental linear magnetic encoder system BML-S2C0-Q53K-M600-K0-KA10
Balluff BML-S2C0-Q53K-M600-K0-KA10 Incremental linear magnetic encoder system BML-S2C0-Q53K-M600-K0-KA10
- MPN: BML-S2C0-Q53K-M600-K0-KA10
- PPN: BAL-BML0796
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$700.64/ EA
Description
Our BML incremental linear magnetic encoders can be used for a broad spectrum of uses and for almost every measurement length. For example, the sensors assure precise positioning in energy production, in the beverage industry and in many other sectors. Using standardized digital and analog interfaces, our BML encoders can be integrated into almost all controllers.
Specifications
Specifications
- Dimension
- 10 x 25 x 35 mm
- Housing material
- PBT
- Resolution
- 50 µm
- Non-linearity max.
- ±400 µm (z=1…5 mm, y=±2 mm)
- Operating voltage Ub
- 10-30 VDC
- IP rating
- IP67
ConnectionCable, 10 m, PUR
InterfaceDigital A/B (HTL)
Read distance0.01-6.5 mm
Reference signalwithout reference signal
Ambient temperature-20-80 °C
Approval/ConformitycURus, CE, EAC, WEEE
