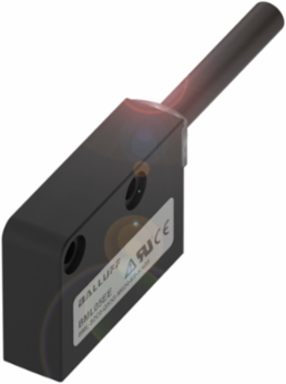

Balluff BML-S2C0-Q53L-M600-P0-KF05 Incremental linear magnetic encoder system BML-S2C0-Q53L-M600-P0-KF05
- MPN: BML-S2C0-Q53L-M600-P0-KF05
- PPN: BAL-BML086M
CAD
$609.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our BML incremental linear magnetic encoders can be used for a broad spectrum of uses and for almost every measurement length. For example, the sensors assure precise positioning in energy production, in the beverage industry and in many other sectors. Using standardized digital and analog interfaces, our BML encoders can be integrated into almost all controllers.
Documentation & Downloads
Specifications
Key Specifications
| Dimension | 10 x 25 x 35 mm |
|---|---|
| Housing material | PBT |
| Resolution | 100 µm |
| Non-linearity max. | ±400 µm (z=1…5 mm, y=±2 mm) |
| Operating voltage Ub | 10-30 VDC |
| IP rating | IP67 |
| Connection | Cable, 5 m, PUR |
|---|---|
| Interface | Digital A/B (HTL) |
| Read distance | 0.01-6.5 mm |
| Reference signal | without reference signal |
| Ambient temperature | -20-80 °C |
| Approval/Conformity | cURus, CE, EAC, WEEE |
