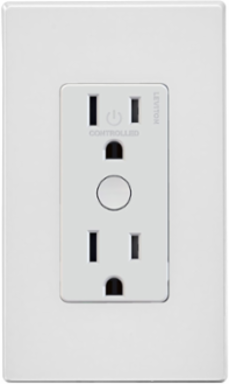

Leviton ZW15R-1BW Decora Smart Z-Wave Outlet 120VAC, 15A, Tamper Resistant, with Color Change Kits
- MPN: ZW15R-1BW
- UPC: 078477588574
- PPN: LEV-ZW15R-1BW
CAD
$108.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

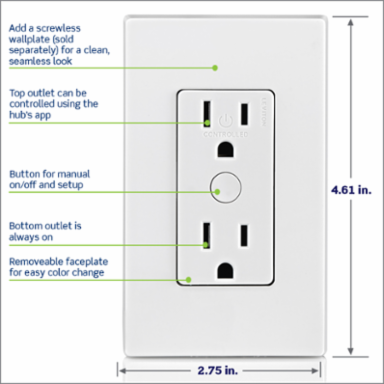

Control lights and appliances from anywhere when paired with a compatible Z-Wave controller. Connect your plug-in lamps, holiday lighting, and small appliances to the top “Controlled” outlet, while the bottom “Powered” outlet remains always on. Uses 700-Series Chipset which offers S2 security and is enabled with SmartStart. The ZW15R features tamper resistant receptacles with built-in shutters to prevent the insertion of unintended foreign objects. As well, the integrated button with vanishing feedback LED provides manual push-button on/off control and clear indication at any time. Change the switch faceplate color to black, gray, brown, light almond, ivory or white using DSRKT
Features
- Relay switching
- Tamper Resistant
- Green LED locator
- Provides two 15A, 120 VAC NEMA 5-15R grounding receptacles (one controlled, one always on) for use with a wide variety of lamps and appliances
- Memory maintains ON/OFF status of loads and during minor power fluctuations
- Button for ON/OFF manual control

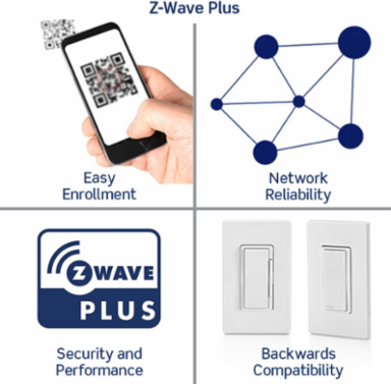

- Z-Wave 700 Series Chipset includes S2 security and SmartStart
- For Indoor use only

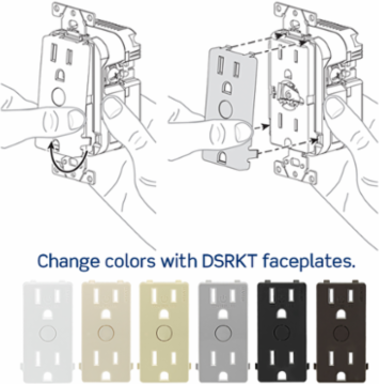

- Change the switch faceplate color to black, gray, brown, light almond, ivory or white using DSRKT
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Standards and Certification
- UL, FCC, NOM, Z-Wave
Material Specifications
- Color
- White
Optional Color Change Kits AvailableYes, DSRKT in Black, White, Light Almond, Ivory, Gray, and Brown
Product Features
- Brand
- Decora Smart Z-Wave
- Grade
- Residential
Device TypeIn-Wall Smart Outlet
Hub RequiredYes
Warranty
- Warranty
- Two-Year Limited
Environmental Specifications
- Operating Temperature
- 0°C to 40°C
Electrical Specifications
- Load Rating
- 5A LED/CFL, 1500W Incand/Halogen, 15A Magnetic, 3/4 HP Motor
- Voltage
- 120VAC, 60Hz
TerminationScrew Terminals
