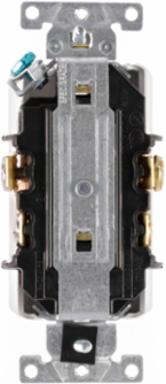

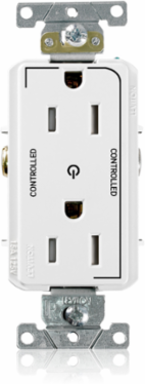

Leviton TDR15-S2W Decora Plus Controlled Tamper-Resistant Duplex Receptacle, 15 Amp, 125 Volt, White
- MPN: TDR15-S2W
- UPC: 078477762387
- PPN: LEV-TDR15-S2W
CAD
$21.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Two Outlets Marked "Controlled", Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White
Features
- Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| Certification/Listing | UL, CSA, NOM-ANCE |
| Applicable Standards | UL 498, CSA C22.2 No. 42 |
|---|---|
| NEMA | WD-1 & WD-6 |
Material Specifications
| Body Material | Nylon |
|---|---|
| Ground Clips | Brass |
| Line Contacts | Phosphor Bronze Triple Wipe 0.031 |
| Terminal Clamp | Plated Steel |
| Face Material | Polypropylene |
|---|---|
| Grounding Screw | Plated Steel |
| Strap Material | Zinc-Plated Steel 0.042 |
| Terminal Screws | Plated Steel |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal Accom. | 14-10 AWG |
| Termination | Back or Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Wire Type | Solid or Stranded Building Wire |
Product Features
| Brand | Decora Plus |
|---|---|
| Device Type | Duplex Receptacle Outlet |
| Grade | Heavy-Duty Industrial Specification Grade |
| Color | White |
|---|---|
| Feature | Two Outlets Marked Controlled|Tamper-Resistant|Smooth Face |
Warranty
| Warranty | 10-Year Limited |
|---|
Environmental Specifications
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
| Dielectric Voltage | Withstands 2000V per UL498 |
|---|---|
| Pole | 2 |
| Voltage | 125 VAC |
AC Horsepower Ratings
| At Rated Voltage | 1/2 HP |
|---|
