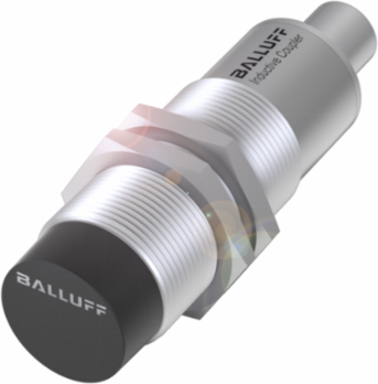

Balluff BIC 2I0-IAA50-M30MI3-SM4A5A Inductive Coupler for IO-Link Signal Transmission, Ø 30 x 107.5 mm, IP67
Balluff BIC 2I0-IAA50-M30MI3-SM4A5A Inductive Coupler for IO-Link Signal Transmission, Ø 30 x 107.5 mm, IP67
- MPN: BIC 2I0-IAA50-M30MI3-SM4A5A
- PPN: BAL-BIC0054
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1182.07/ EA
Description
Designed for robust signal transmission, the Balluff inductive coupler excels in providing reliable IO-Link connectivity in challenging environments. With a compact diameter of 30 mm and a length of 107.5 mm, this device features a nickel-plated brass housing that ensures durability and protection against dust and moisture, achieving an IP67 rating. Capable of operating within a temperature range of -5 to 55 °C, it supports a transmission distance of up to 5 mm and delivers a rated output current of 500 mA, making it an ideal choice for various industrial applications. The integration of a 5-pin M12x1 female connector facilitates easy installation, while the IO-Link 1.0 interface and data transfer rate of 38.4 kBaud ensure efficient communication for your automation needs.
Specifications
Specifications
- Country of Origin
- Hungary
- Transmission distance
- 0...5 mm
- Interface
- IO-Link 1.0
- Output voltage
- 24 VDC
- Housing material
- Nickel-plated brass, coated
- Ambient temperature
- -5...55 °C
- Data transfer rate
- COM2 (38.4 kBaud)
FunctionUni IO-Link
ComponentRemote
ConnectionConnector, M12x1-Female, 5-pin
Rated output current500 mA
DimensionØ 30 x 107.5 mm
IP rating per IEC 60529IP67
SIO modeno
