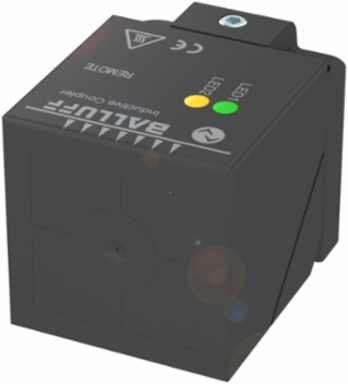

Balluff BIC 2B0-IT1A7-Q40KFU-SM4A5A Inductive Coupler, IO-Link 1.1, IP67, 5-Pin M12 Connector

Inductive Coupler, IO-Link 1.1, IP67, 5-Pin M12 Connector
  • MPN: BIC 2B0-IT1A7-Q40KFU-SM4A5A
  • PPN: BAL-BIC007H

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1418.61/ EA

Description

The Balluff inductive coupler is engineered for seamless connectivity and robust performance in demanding environments. With an IP67 rating, this device is built to withstand harsh conditions, making it ideal for industrial applications. It features a bi-directional signal type and supports IO-Link 1.1, ensuring reliable data transmission with a maximum output current of 5 A. Compact in design, measuring 40 x 40 x 62 mm, it connects easily via a 5-pin M12 connector, while offering a rapid data transfer rate of up to 230.4 kBaud. This coupler not only enhances communication efficiency but also operates effectively within a wide temperature range of -5 to 55 °C, making it a versatile choice for any automation setup.

Specifications

Specifications

Country of Origin
Hungary
Transmission distance
0...5 mm
Interface
IO-Link 1.1
Output voltage
24 VDC
Output current max.
5 A / 1 ms
Dimension
40 x 40 x 62 mm
IP rating per IEC 60529
IP67
Additive cycle time
Device + 2.8 ms
Process data out
0…32 bytes
Signal typebi-directional
ComponentRemote
ConnectionConnector, M12x1-Female, 5-pin
Rated output current1.7 A
Housing materialPBTP
Ambient temperature-5...55 °C
Data transfer rateCOM2 (38.4 kBaud); COM3 (230.4 kBaud)
Process data in0…32 bytes
SIO modeno
