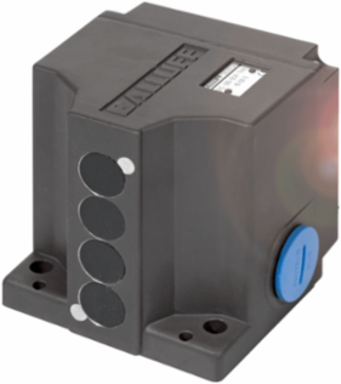

Balluff BNS 816-B02-THA-16-611-11 Inductive Multi-Position Limit Switch, 79 x 48 x 77.5 mm, IP67, 24 VDC
- MPN: BNS 816-B02-THA-16-611-11
- PPN: BAL-BNS03EJ
CAD
$1030.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Inductive row-position counters offer the combination of advantages of an inductive sensor with those of our mechanical housing-based line of products They are distinguished by a compact design and high switching distances. The coordinated transmission frequencies of the inductive switching elements allow for a tight sequential arrangement. The switching elements are equipped with LEDs. The switching function is thus recognizable on the housing cover.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 24 V DC
- Type
- Inductive Multi-Position Limit Switch
- Switching Output
- PNP complementary
- Switch Position Spacing
- 16 mm
- Assured Operating Distance
- 4 mm
- Dimension
- 79 x 48 x 77.5 mm
- Connection Type
- Screw terminal
- Housing Material
- Aluminum, Anodized
- Approval/Conformity
- CE, WEEE
Operating PrincipleInductive
Continuous Current0.13 A
Rated Operating Distance5 mm
Switching Frequency500 Hz
Operating Temperature Range-25 to 70 C
Installation OrientationVertical
Electrical Version3-/4-wire
IP RatingIP67
MTTF (40 C)1680 a
