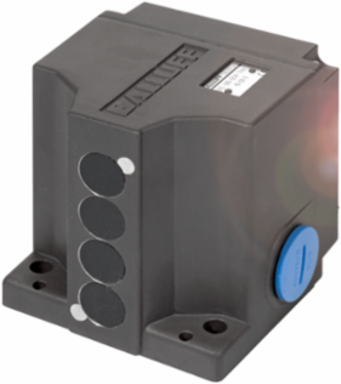

Balluff BNS 816-B03-THA-16-611-11 Inductive Multi-Position Limit Switch, Aluminum, IP67, 24 VDC, 5 mm Range
- MPN: BNS 816-B03-THA-16-611-11
- PPN: BAL-BNS03FH
CAD
$1425.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Inductive row-position counters offer the combination of advantages of an inductive sensor with those of our mechanical housing-based line of products They are distinguished by a compact design and high switching distances. The coordinated transmission frequencies of the inductive switching elements allow for a tight sequential arrangement. The switching elements are equipped with LEDs. The switching function is thus recognizable on the housing cover.
Documentation & Downloads
Specifications
Key Specifications
- Housing material
- Aluminum
- Operating principle
- 1-3. Switch position: Inductive
- Switching frequency
- 1-3. Switch position: 500 Hz
- Rated operating voltage Ue
- 1-3. Switch position: 24 VDC
- Connection type
- 1-3. Switch position: Screw terminal
- IP rating
- IP67
VersionInductive
Range5 mm
Continuous current1-3. Switch position: 0.13 A
InstallationVertical
Ambient temperature-25-70 °C
Approval/ConformityCE, WEEE
