Balluff

Balluff BNS 816-B08-TOB-08-603-11 Inductive multi-position limit switches BNS 816-B08-TOB-08-603-11

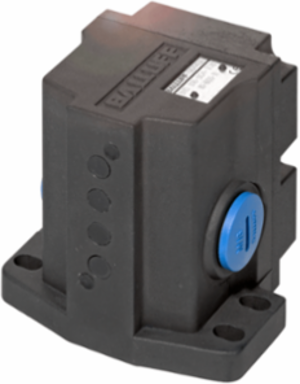

Inductive multi-position limit switches BNS 816-B08-TOB-08-603-11
  • MPN: BNS 816-B08-TOB-08-603-11
  • PPN: BAL-BNS03JR

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3759.02/ EA

Description

Inductive row-position counters offer the combination of advantages of an inductive sensor with those of our mechanical housing-based line of products They are distinguished by a compact design and high switching distances. The coordinated transmission frequencies of the inductive switching elements allow for a tight sequential arrangement. The switching elements are equipped with LEDs. The switching function is thus recognizable on the housing cover.

Specifications

Specifications

Dimension
72 x 96 x 60 mm
Version
Inductive
Range
1.1 mm
Continuous current
1-8. Switch position: 0.13 A
Installation
Vertical
Connection type
1-8. Switch position: Screw terminal
IP rating
IP67
Housing materialAluminum
Operating principle1-8. Switch position: Inductive
Switching frequency1-8. Switch position: 500 Hz
Rated operating voltage Ue1-8. Switch position: 24 VDC
Switch position spacing8 mm
Ambient temperature-25-70 °C
Approval/ConformityCE, WEEE
