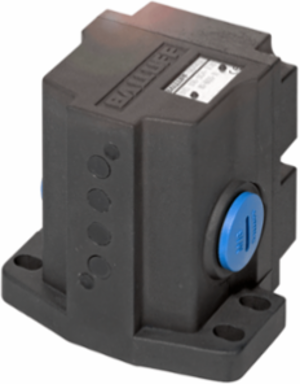

Balluff BNS 816-B10-TOB-08-603-11 Inductive Multi-Position Limit Switch, 72 x 112 x 60 mm, IP67
- MPN: BNS 816-B10-TOB-08-603-11
- PPN: BAL-BNS03JY
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Inductive row-position counters offer the combination of advantages of an inductive sensor with those of our mechanical housing-based line of products They are distinguished by a compact design and high switching distances. The coordinated transmission frequencies of the inductive switching elements allow for a tight sequential arrangement. The switching elements are equipped with LEDs. The switching function is thus recognizable on the housing cover.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 72 x 112 x 60 mm
- Version
- Inductive
- Range
- 1.1 mm
- Continuous current
- 1-10. Switch position: 0.13 A
- Installation
- Vertical
- Connection type
- 1-10. Switch position: Screw terminal
- IP rating
- IP67
Housing materialAluminum
Operating principle1-10. Switch position: Inductive
Switching frequency1-10. Switch position: 500 Hz
Rated operating voltage Ue1-10. Switch position: 24 VDC
Switch position spacing8 mm
Ambient temperature-25-70 °C
Approval/ConformityCE, WEEE
