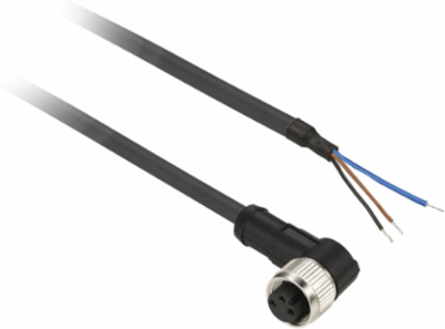

Telemecanique Sensors XZCP0866L5 Pre wired connectors XZ, elbowed female, M8, 3 pins, cable PUR 5 m
- MPN: XZCP0866L5
- PPN: TES-XZCP0866L5
- UNSPSC: 39121528
CAD
$64.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pre wired connectors XZ, elbowed female, M8, 3 pins, cable PUR 5 m
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- general purpose
- Accessory / Separate Part Category
- cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors
Complementary
- Collar Material
- metal
- Cable Outer Diameter
- 5.2 mm
- Wire Insulation Material
- PUR
- Cable Connector Fixing
- screw-on
- [In] Rated Current
- 4 A
- Status Led
- 2 NPN LEDs
- Contact Resistance
- 5000 µOhm
Electrical Connectionelbowed female connector M8, 3 pins
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage10...30 V DC
Cable Length5 m
Cable Composition3 x 0.34 mm²
Net Weight0.12 kg
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -40-80 °C
Ambient Air Temperature For Operation-40-80 °C static || -5-80 °C flexing
Ip Degree Of ProtectionIP67 || IP69K || IP65
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
