Telemecanique Sensors XZCP0766L2 Pre wired connectors XZ, elbowed female, M8, 3 pins, cable PUR 2 m
- MPN: XZCP0766L2
- PPN: TES-XZCP0766L2
- UNSPSC: 39122230
CAD
$66.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

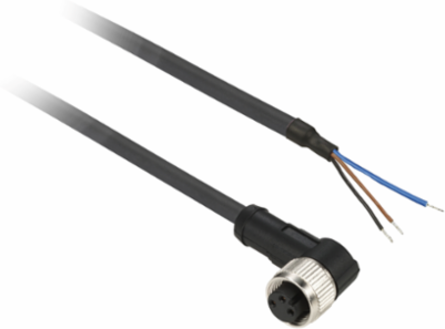

Pre wired connectors XZ, elbowed female, M8, 3 pins, cable PUR 2 m
Documentation & Downloads
Specifications
Key Specifications
| Series Name | general purpose |
|---|---|
| Accessory / Separate Part Category | cabling accessory |
| Range Of Product | Telemecanique Cabling components |
|---|---|
| Accessory / Separate Part Type | pre-wired connectors |
Complementary
| Collar Material | metal |
|---|---|
| Cable Outer Diameter | 5.2 mm |
| Wire Insulation Material | PUR |
| Cable Connector Fixing | screw-on |
| Line Rated Current | 4 A |
| Status Led | 2 PNP LEDs |
| Contact Resistance | 5000 µOhm |
| Electrical Connection | elbowed female connector M8, 3 pins |
|---|---|
| Minimum Insulating Resistance | 1 GΩ |
| [Ue] Rated Operational Voltage | 10...30 V DC |
| Cable Length | 2 m |
| Cable Composition | 3 x 0.34 mm² |
| Net Weight | 0.1 kg |
Environment
| Product Certifications | cULus |
|---|---|
| Ambient Air Temperature For Storage | -40-80 °C |
| Ambient Air Temperature For Operation | -40-80 °C static || -5-80 °C flexing |
|---|---|
| Ip Degree Of Protection | IP69K || IP67 || IP65 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI1308015EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1308015 |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
