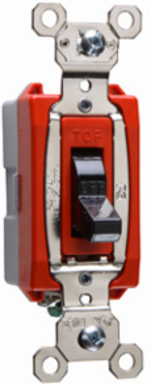

Pass & Seymour PS20AC1 Industrial Heavy-Duty 1-Pole Toggle Switch, 20A 120/277V, Brown
- MPN: PS20AC1
- UPC: 785007195200
- PPN: P-S-PS20AC1
CAD
$37.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Industrial Heavy-Duty 1-Pole Toggle Switch, 20A 120/277V, Brown
Features
- One-piece toggle molded from chemical-,impact-,and heat-resistant thermoplastic.
- Impact- and chemical-resistant cover.
- Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.
- One-piece nickel-plated brass strap for superior corrosion-resistance.
- Auto-ground clip assures positive ground.
- Cam control and spring actuator for positive ''makes and breaks.''
- Heavy-duty bumpers for quiet, smooth operation.
- Locking support provides resistance to face and back body separation.
- Oversized silver-alloy contacts for long life and better heat dissipation.
- Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.
- Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce.
- Grounding terminal is standard with screw-pressure plate back wire.
- Shallow design for easier installation.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.073 in
- Type
- Switch
- Load Type
- CFL
- Load Type
- LED
- Load Type
- Xenon
- Load Type
- Halogen
- Voltage
- 120/277 V
- Switch Type
- Toggle
- Indoor/Outdoor
- Indoor
- Load Type
- Incandescent
- Number of Switches
- 1.0
- Throw Type
- Single Throw
- Features
- Chemical Resistant
- Application Sector
- Commercial
- Load Rating
- 20 A @ 120/277 VAC
- Horsepower Rating
- 2 HP @ 240 VAC
- Wire Connection Type
- Screw Terminals
- Terminal Accommodation
- #14 AWG - #10 AWG
- Finish
- Matte
- Product Line
- Pass & Seymour
Height3.281 in
Width1.32 in
Country of OriginMexico
Amperage20.0 A
StandardFEDSPEC
Number of Gangs1
StandardUL 498/20
Load TypeUniversal
Load TypeFluorescent
Mounting TypeWall Box
Wall Plate IncludedNo
Requires Neutral WireNo
Number of PolesSingle Pole
Application SectorIndustrial
Horsepower Rating1 HP @ 120 VAC
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
ColorBrown
MaterialThermoplastic
Special FeaturesBack & side wire, locking support, heavy duty toggle
