Fluke FLUKE-289/IMSK Fluke 289 IMSK Industrial Multimeter Service Kit FLUKE-289/IMSK
- MPN: FLUKE-289/IMSK
- UPC: 095969493901
- PPN: FLU-FLUKE-289/IMSK
CAD
$1417.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

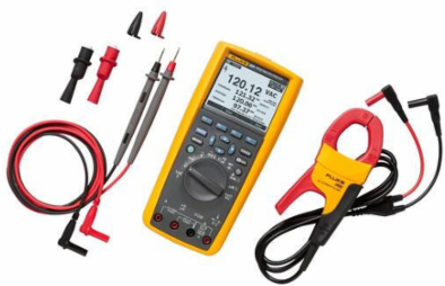

Fluke 289 IMSK Industrial Multimeter Service Kit FLUKE-289/IMSK
Features
- True-RMS accuracy with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-Average recording give you the results you need.
- Fluke-i400 AC 400A Current Clamp turns the 289 into a clamp meter.
- Safety rated CAT III 1000 V, CAT IV 600 V meter to get you home safely from the job.
- “…Tactically, a good reason to get the i400 clamp for your DMM instead of a dedicated clamp meter is that using a clamp you can put the display where you want it.”- verified purchaser
Documentation & Downloads
Specifications
Mechanical and General Specifications
| Warranty | 1 year |
|---|---|
| Maximum conductor size (busbar) | 750 MCM |
| Shrouded banana plugs | Yes |
| Maximum conductor diameter | 32 mm (1.25 in) |
|---|---|
| Output cable length | 1.5 m (59 in) |
Specifications: Fluke i400 AC Current Clamp
| Nominal current range | 400 A |
|---|---|
| Maximum non-destructive current | 1000 A |
| Basic accuracy | (% reading + floorspec) |
| Output level(s) | 1 mA/A |
| Continuous current range | 1 A - 400 A |
|---|---|
| Lowest measurable current | 1 A |
| Useable frequency | 5 Hz - 20 kHz |
Safety Specifications
| Safety | CAT IV 600 V, CAT III, 1000 V |
|---|
| Maximum voltage | 1000 V AC rms from earth to ground, in compliance with EN61010 |
|---|
