Fluke FLUKE 116 323 KIT Fluke 116/323 HVAC Combo Kit - Includes Multimeter and Clamp Meter

MPN: FLUKE 116 323 KIT
UPC: 095969659208
PPN: FLU-FLUKE-116/323 KIT

$598.80

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

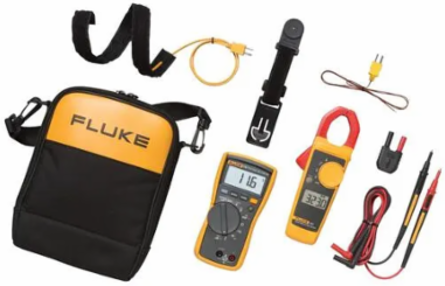

Fluke 116/323 HVAC Combo Kit - Includes Multimeter and Clamp Meter

Documentation & Downloads

Specifications

Key Specifications

Maximum voltage between any terminal and earth ground	600 V: 600 V
Surge protection	6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2: 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Display 6,000 counts, updates 4 per second	6,000 counts, updates 4 per second
AC voltage Accuracy	1.5% ±5 digits
Operating temperature	-10°C to +50°C: -10°C to +50°C
DC voltage Accuracy	1.0% ±5 digits
Battery type	9 volt Alkaline, NEDA 1604A/ IEC 6LR61: 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Resistance Accuracy	1.0% ±5 digits
Continuity	Continuity: ≤ 70 Ω
AC response AC response	True-rms
DC volts Range/Resolution	6.000 V / 0.001 V60.00 V / 0.01 V600.00 V / 0.1 V
DC volts Accuracy	±([% of reading] + [counts]): 0.5% + 2
Size Max wire diameter	30 mm (600 MCM)
Size Weight	265 g
AC millivolts¹ True RMS Range/Resolution	600.0 mV / 0.1 mV
Warranty Two-year	Two-year
AC volts¹ True RMS Range/Resolution	6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V
Continuity Range/Resolution	600 Ω / 1 Ω
Ohms Range/Resolution	600.0 Ω / 0.1 Ω6.000 kΩ / 0.001 kΩ60.00 kΩ / 0.01 kΩ600.0 kΩ / 0.1 kΩ6.000 MΩ / 0.001 MΩ \|\| 40.00 MΩ / 0.01 MΩ
Diode test Range/Resolution	2.000 V / 0.001 V
Capacitance Range/Resolution	1000 nF / 1 nF10.00 μF / 0.01 μF100.0 μF / 0.1 μF9999 μF / 1 μF100 μF to 1000 μF \|\| > 1000 μF
LoZ capacitance Range	1 nF to 500 μF
Temperature² (Type-K thermocouple) Range/Resolution	-40°C to 400°C / 0.1°C \|\| -40°F to 752°F / 0.2°F
AC μamps True RMS (45 Hz to 500 Hz) Range/Resolution	600.0 μA / 0.1 μA
DC μamps Range/Resolution	600.0 μA / 0.1 μA
Hz (V or A input)² Range/Resolution	99.99 Hz / 0.01 Hz999.99 Hz / 0.1 Hz9.999 Hz / 0.001 Hz50.00 Hz / 0.01 Hz
Size	167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in): 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Warranty 3 years	3 years

AC current Range	400.0 A
AC current Accuracy	2% ±5 digits(45 Hz to 65 Hz)2.5% ±5 digits(65 Hz to 400 Hz)
AC voltage Range	600.0 V
Bar graph 33 segments, updates 32 per second	33 segments, updates 32 per second
DC voltage Range	600.0 V
Storage temperature	-40°C to +60°C: -40°C to +60°C
Resistance Range/Resolution	400.0 Ω/ 4000 Ω
Battery life 400 hours typical, without backlight	400 hours typical, without backlight
DC millivolts Range/Resolution	600.0 mV / 0.1 mV
DC millivolts Accuracy	±([% of reading] + [counts]): 0.5% + 2
Data hold Data hold	Yes
Size	H x W x D (mm): 207 x 75 x 34
Auto volts Range/Resolution	600.0 V / 0.1 V
Auto volts Accuracy	2.0% + 3 (DC, 45 Hz to 500 Hz)4.0% + 3 (500 Hz to 1 kHz)
Category rating	CAT III 600 VCAT IV 300 V: CAT III 600 VCAT IV 300 V
AC millivolts¹ True RMS Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz)2.0% + 3 (500 Hz to 1 kHz)
AC volts¹ True RMS Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz)2.0% + 3 (500 Hz to 1 kHz)
Continuity Accuracy	Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer.
Ohms Accuracy	0.9% + 1 \|\| 1.5% + 2
Diode test Accuracy	0.9% + 2
Capacitance Accuracy	1.9% + 2 \|\| 5% + 20%
LoZ capacitance Accuracy	10% + 2 typical
Temperature² (Type-K thermocouple) Accuracy	1% + 10² \|\| 1% + 18²
AC μamps True RMS (45 Hz to 500 Hz) Accuracy	1.0% + 2
DC μamps Accuracy	1.0% + 2
Hz (V or A input)² Accuracy	0.1% + 2
Weight 550 g	550 g
