Kopex-ex ISR050-062 Industrial Strain Relief Fitting
Kopex-ex ISR050-062 Industrial Strain Relief Fitting
- MPN: ISR050-062
- UPC: 786210059440
- PPN: T-B-ISR050-062
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$20.14/ EA
Description

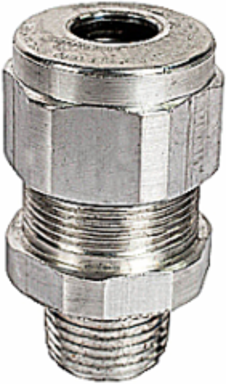

Industrial Strain-Relief Fitting, Hub Size 1/2 Inch NPT, Cable Range 10.79 to 15.75mm, CSA and UL Listed, Outer Diameter 38.10mm, Aluminum
Features
- For use with unarmoured cable types suitable for use in Class I, Zone 1
- Tray Cable complies with IEC requirements when used with enclosures containing no arcing or sparking devices.
- Portable Cord complies with IEC requirements when used with enclosures containing no arcing or sparking devices
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121719 Strain reliefs
- Brand Name
- Kopex
- Special Features
- 100% of IEC Cable Pull-Out Requirements with No External Clamping
- Standard
- CSA, UL E328651 and E311979
- Hub Size
- 1/2 Inch NPT
- Material
- Aluminum
IGCC5067 Strain reliefs
TypeIndustrial Strain Relief Fitting
ApplicationConnection and Strain Relief for Conduit Systems
Cable Size10.79 to 15.75mm
BendNone
ColorMetallic
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Revolving thread
- N
- Connection type screw connection to housing
- Thread
- Thread connection size
- Other
- Material housing
- Other
ModelStraight
Construction typeExternal thread
Thread typeNPT
One-pieceN
Operating temperature-50-+110°C
Packaging
- Outer Quantity
- 20
- Weight Uom
- 15 lbs. per 100
Outer Dimensions (inches)9x4.69x4.13
Downloads
