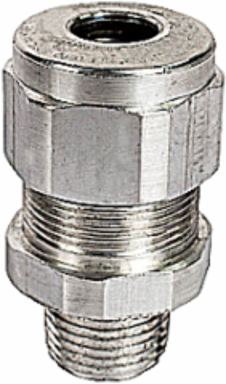

Kopex-ex ISR075-082 Industrial Strain Relief Fitting
- MPN: ISR075-082
- UPC: 786210059457
- PPN: T-B-ISR075-082
CAD
$24.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Industrial Strain-Relief Fitting, Hub Size 3/4 Inch NPT, Cable Range 14.86 to 20.70mm, CSA and UL Listed, Outer Diameter 43.18mm, Aluminum
Features
- For use with unarmoured cable types suitable for use in Class I, Zone 1
- Tray Cable complies with IEC requirements when used with enclosures containing no arcing or sparking devices.
- Portable Cord complies with IEC requirements when used with enclosures containing no arcing or sparking devices
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Revolving thread
- N
- Connection type screw connection to housing
- Thread
- Thread connection size
- Other
- Material housing
- Other
ModelStraight
Construction typeExternal thread
Thread typeNPT
One-pieceN
Operating temperature-50-+110°C
North American Specifications (UNSPSC)
- UNSPSC
- 39121719 Strain reliefs
- Brand Name
- Kopex
- Special Features
- 100% of IEC Cable Pull-Out Requirements with No External Clamping
- Standard
- CSA, UL E328651 and E311979
- Hub Size
- 3/4 Inch NPT
- Material
- Aluminum
IGCC5067 Strain reliefs
TypeIndustrial Strain Relief Fitting
ApplicationConnection and Strain Relief for Conduit Systems
Cable Size14.86 to 20.70mm
BendNone
ColorMetallic
Packaging
- Outer Quantity
- 20
- Weight Uom
- 20 lbs. per 100
Outer Dimensions (inches)9.06x6.56x5.13
