Sta-Kon RB14-47PT Pin Terminal
- MPN: RB14-47PT
- UPC: 786210921815
- PPN: T-B-RB14-47PT
CAD
$1.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

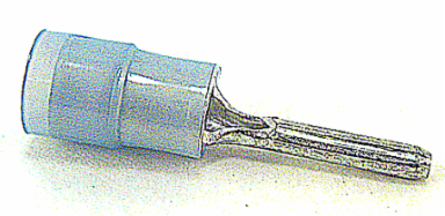

Nylon Insulated Pin Terminal, Length .87 Inches, Pin Length .390 Inches, Diameter .075 Inches, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated
Features
- Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks.
- Application Tools: WT2000, , ERG4001
- Alternate Package Qty: RB147PT
Specifications
European Specifications (ETIM)
| ETIM | EC001052 Solderless copper terminals for copper conductors |
|---|---|
| Insulation | PA |
| Reel packaging | N |
| Material | Copper |
| Flange shape | Pin shape |
|---|---|
| Colour insulation | Blue |
| AWG-range | 16-14 |
| Surface protection | Tinned |
Packaging
| Inner Quantity | 100 |
|---|---|
| Outer Quantity | 500 |
| Weight Uom | 0.56 lbs. per 100 |
| Inner Dimensions (inches) | 3.19x2.31x6.19 |
|---|---|
| Outer Dimensions (inches) | 10.5x9x7 |
North American Specifications (UNSPSC)
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| Brand Name | Sta-Kon |
| Special Features | Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks. |
| Wire Size | 16-14 |
| Material | Copper |
| IGCC | 4603 Electrical terminals |
|---|---|
| Type | Pin Terminal |
| Standard | UL E9809 |
| Voltage Rating | 300V |
| Color | Blue |
