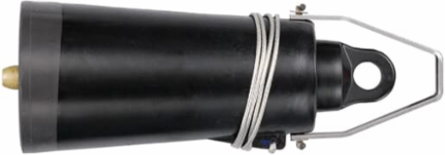

Thomas & Betts 376DRG INSU CAP 35KV LB W/TP
- MPN: 376DRG
- UPC: 783786646487
- PPN: T-B-376DRG
- UNSPSC: 26121630
CAD
$555.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kV 200 Amp, Loadbreak Insulated Cap with Ground Lead #14 AWG and Test Point, equipped with insulated cuff. Brass Probe. Diameter 3.13 inch, Length 8.56 inch.
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
Additional Information
| Application | Fully shielded, fully submersible, hot stick operable, separable connectors designed for energized operation. They are suitable for use on 35kV class loadbreak Single and Triple Phase systems. |
|---|---|
| Effective Date | 19980115 |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | 3.13 inch (79.4 mm) Diameter |
| Standards | ANSI/IEEE 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber |
| Product Type | Insulated Cap |
| Special Functions | 35kV, 200 Amp Loadbreak Rated. Molded EPDM Rubber. Includes all brass probe. Provision for hotstick operation. Ground lead wire #14 AWG attached. Insulated cuff for extra protection. Non-corrosive capacitive test point. |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
